• Pickup box
• Vehicle control, hill descent

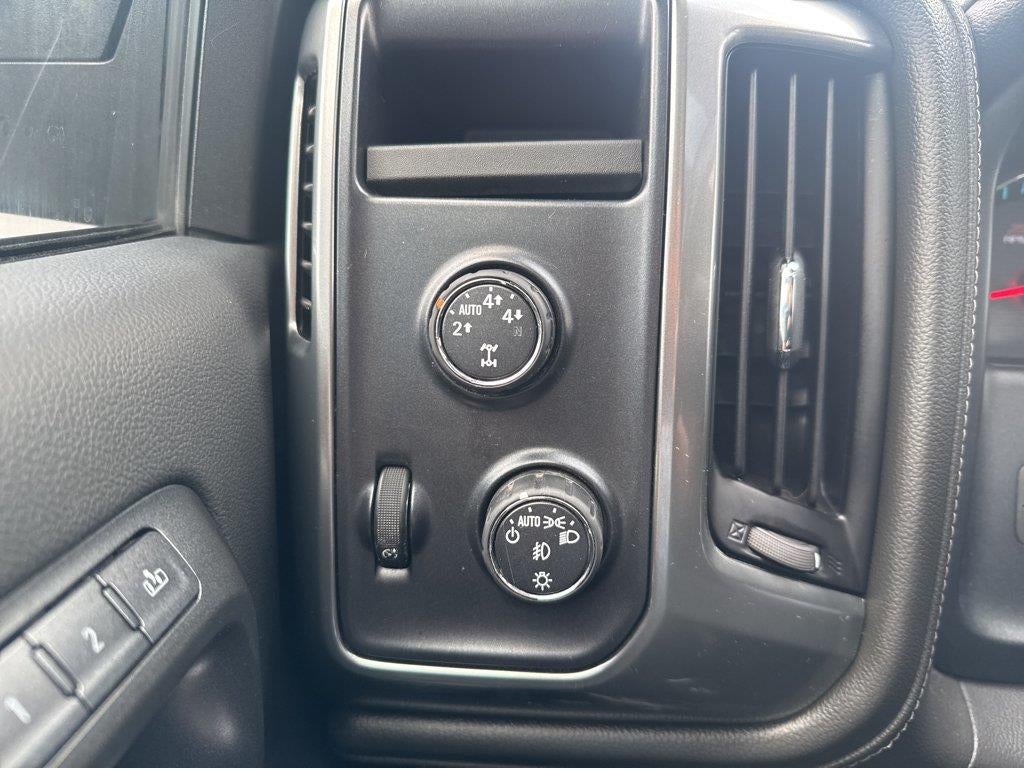

• Transfer case, electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Air cleaner, high-capacity
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Underbody shield, transfer case protection (Requires 4WD models.)
• Frame, fully-boxed, hydroformed front section
• Z71 Package, Off-Road (Requires 4WD model.), includes monotube Rancho brand shocks, (K47) air cleaner, (JHD) Hill Descent Control, (NZZ) underbody shield and (V76) recovery hooks. Also includes brushed metal Z71 door sill plate, unique Z71 gauge cluster, unique finish interior trim plates, unique lower bumper appearance, unique grille design with Z71 badge and Z71 pickup box decals (Includes (RBX) 18" tire and (RD1) 18" bright machined wheels. Upgradeable to (RD2) 20" chrome wheels or 22" LPO wheels. Not available with exterior color (G1C) Slate Grey Metallic.)
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) bright-machined aluminum

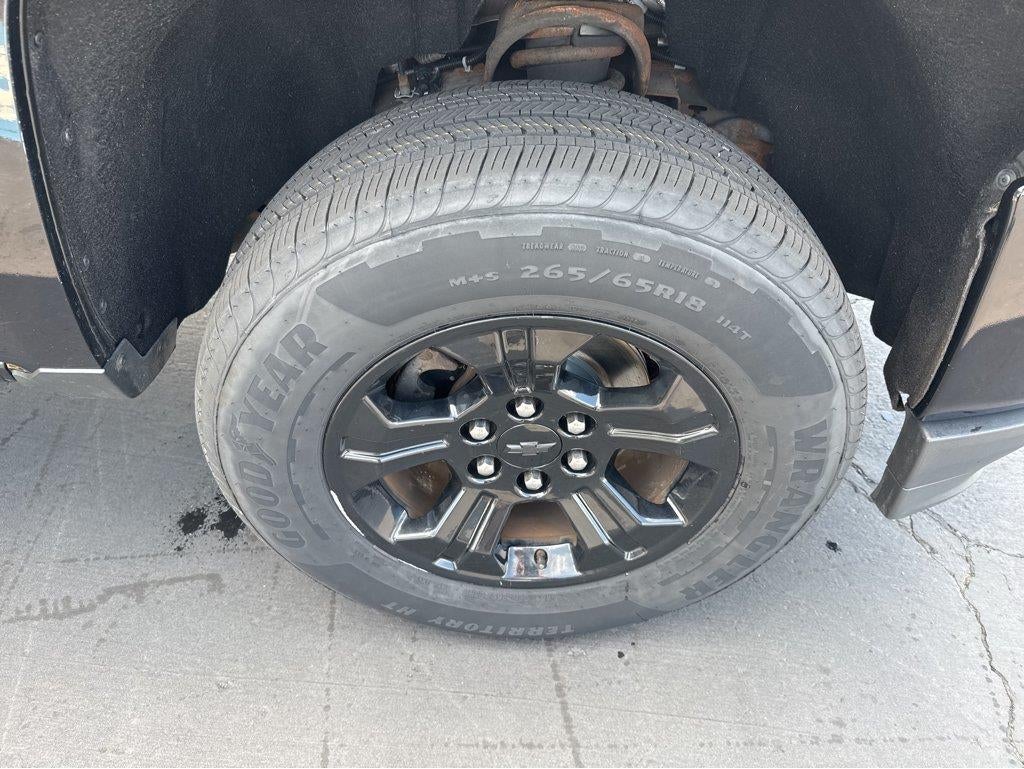

• Tires, P265/65R18 all-terrain, blackwall
• Tire, spare P265/70R17 all-season, blackwall
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front body color

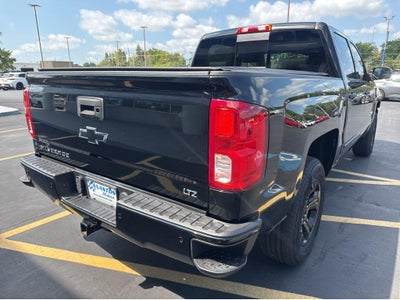

• Bumper, rear body-color, with CornerSteps
• Recovery hooks, front, frame-mounted, black

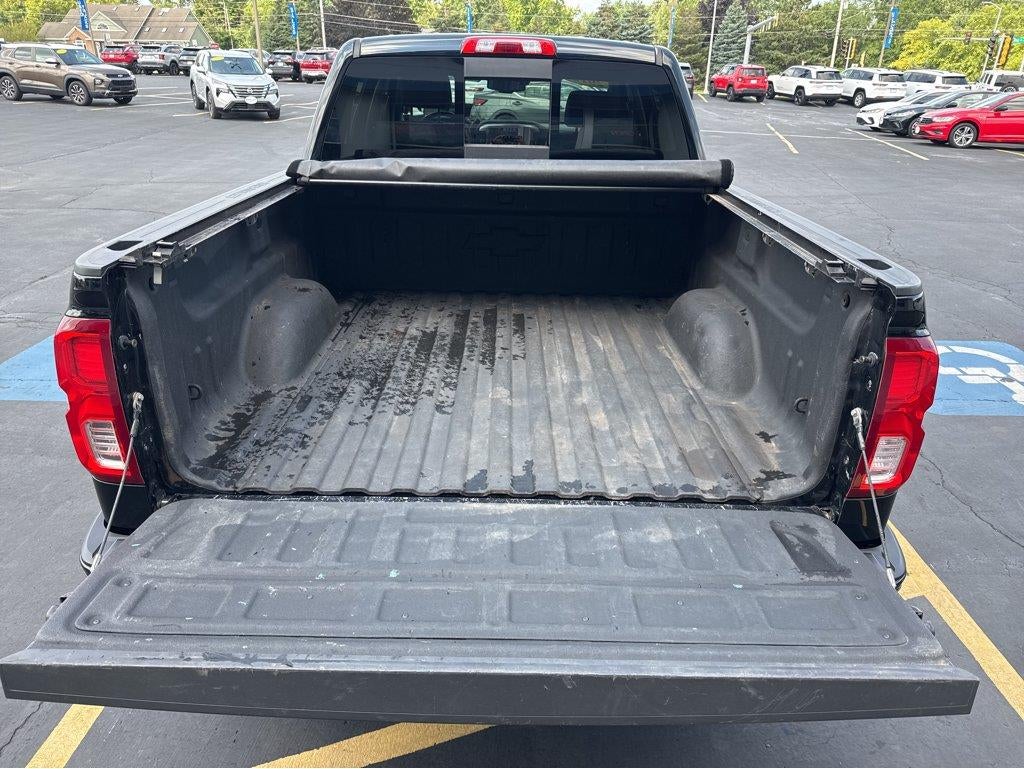

• Bed Liner, Spray-on, Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops. (Included with (PDL) Cargo Convenience Package. Not available with (VZX) bed liner, LPO.)
• Lamps, cargo area, cab mounted with switch on center switch bank
• CornerStep, rear bumper
• Moldings, bodyside, chrome
• Wheelhouse liners, rear
• Grille surround, body color
• Headlamps, LED projector with signature DRL and turn
• Headlamp bezels, body-color
• Taillamps, LED with signature
• Fog lamps, thin profile LED
• Mirrors, outside chrome cap, heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps, chrome
• Glass, deep-tinted
• Door handles, chrome
• Tailgate and bed rail protection cap, top

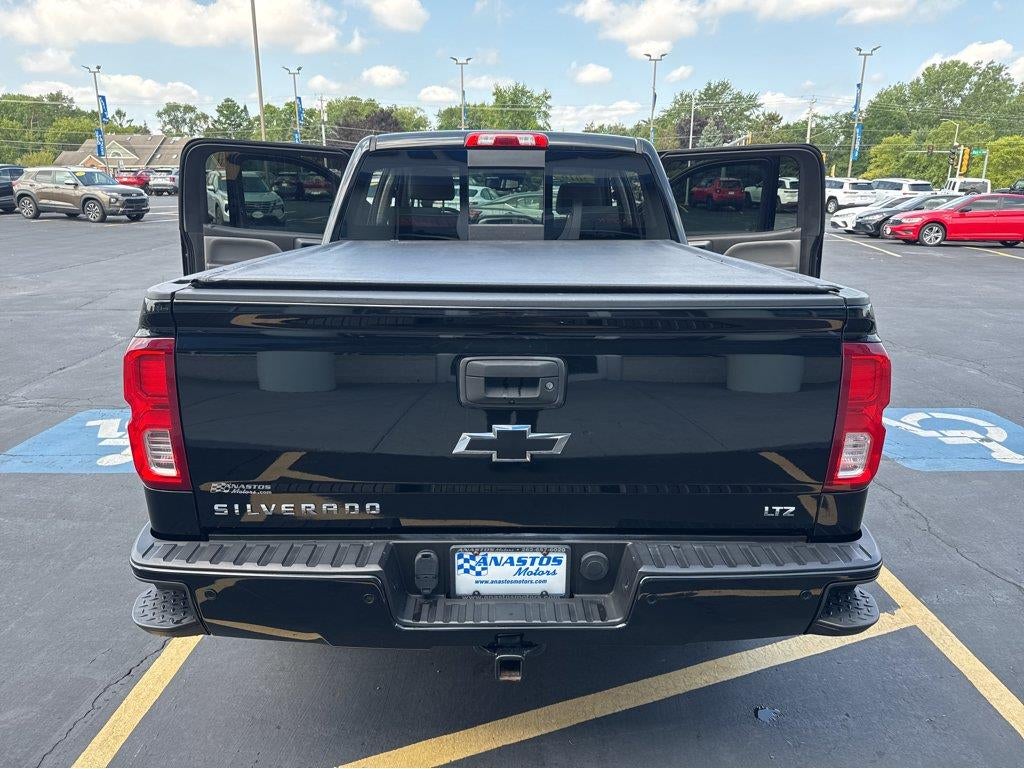

• Remote Locking Tailgate

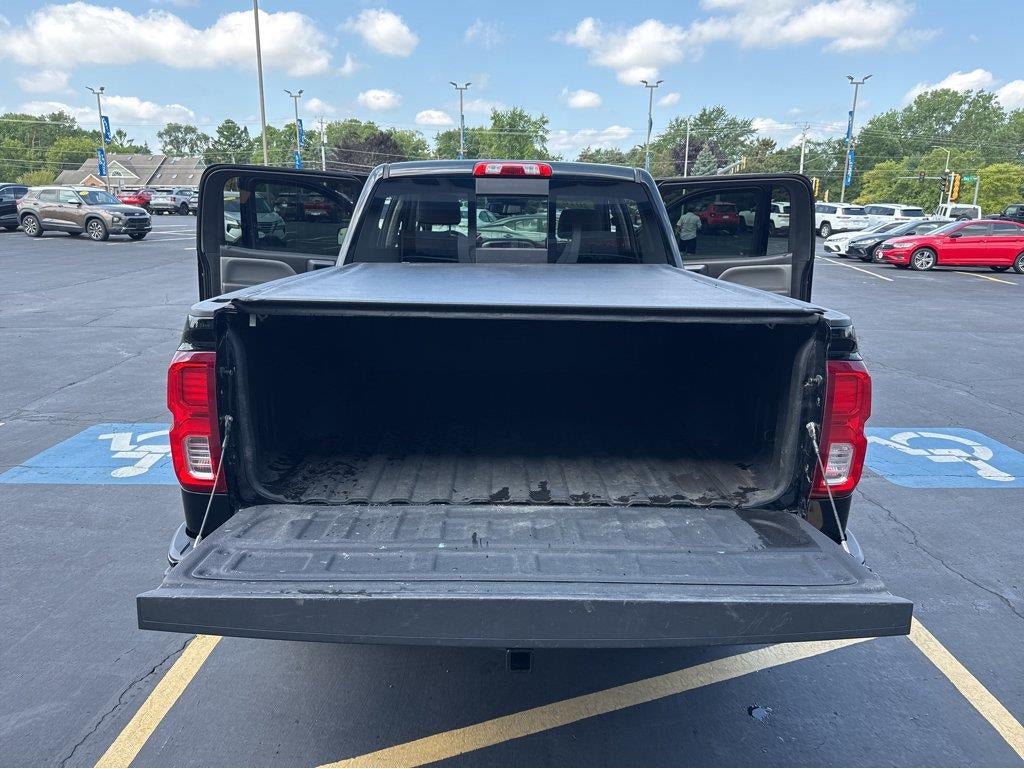

• Tailgate, EZ-Lift and Lower

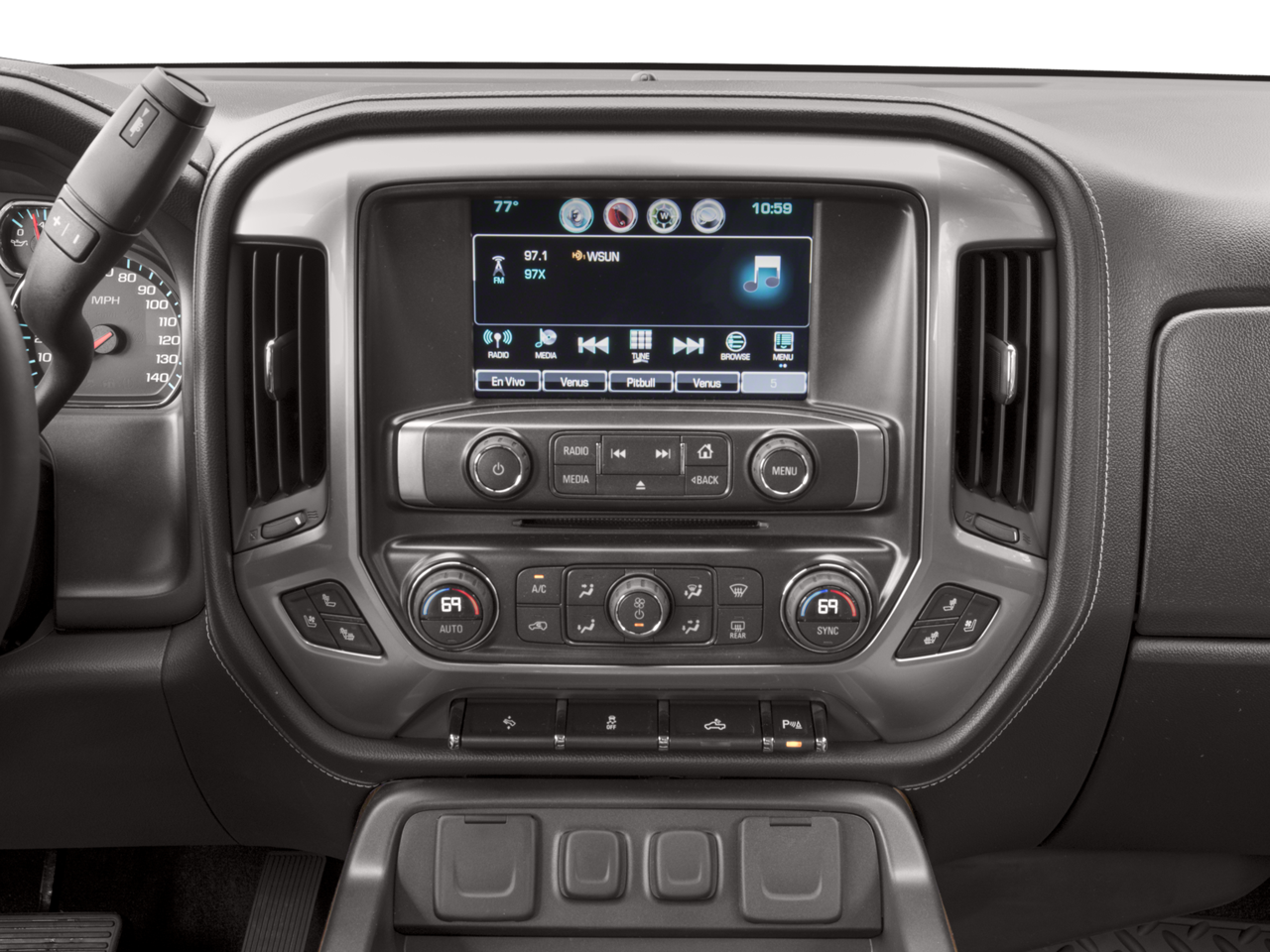

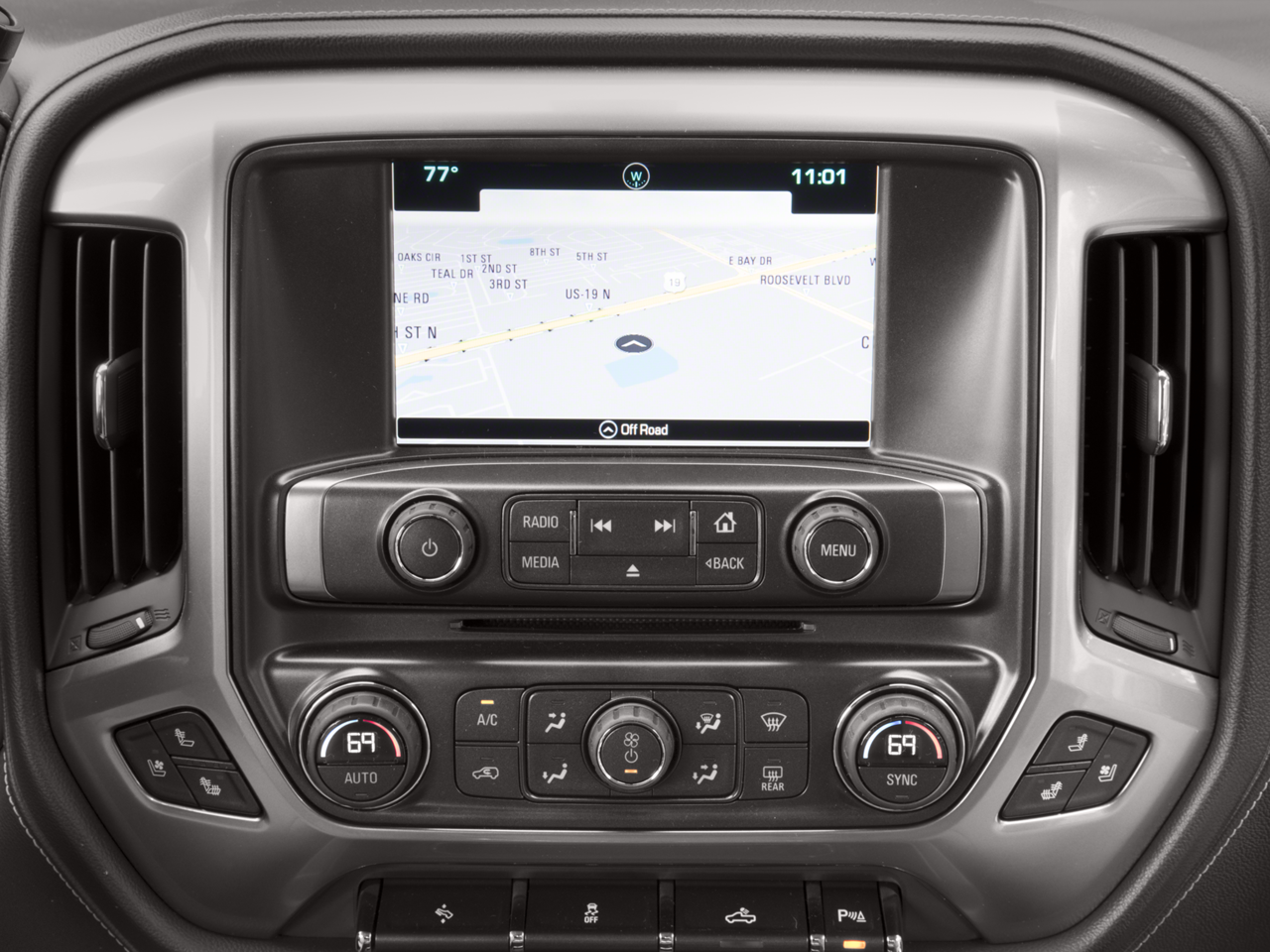

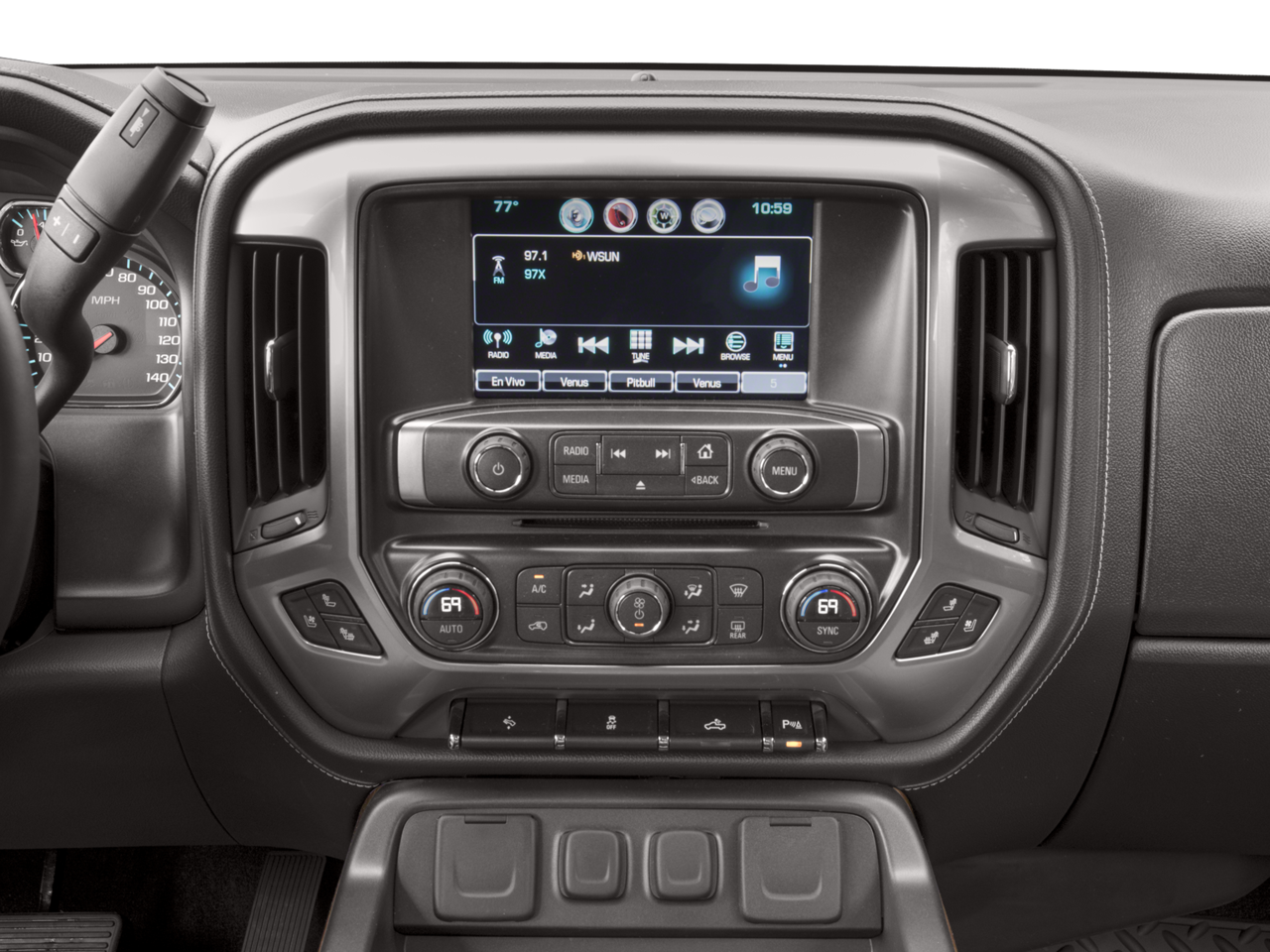

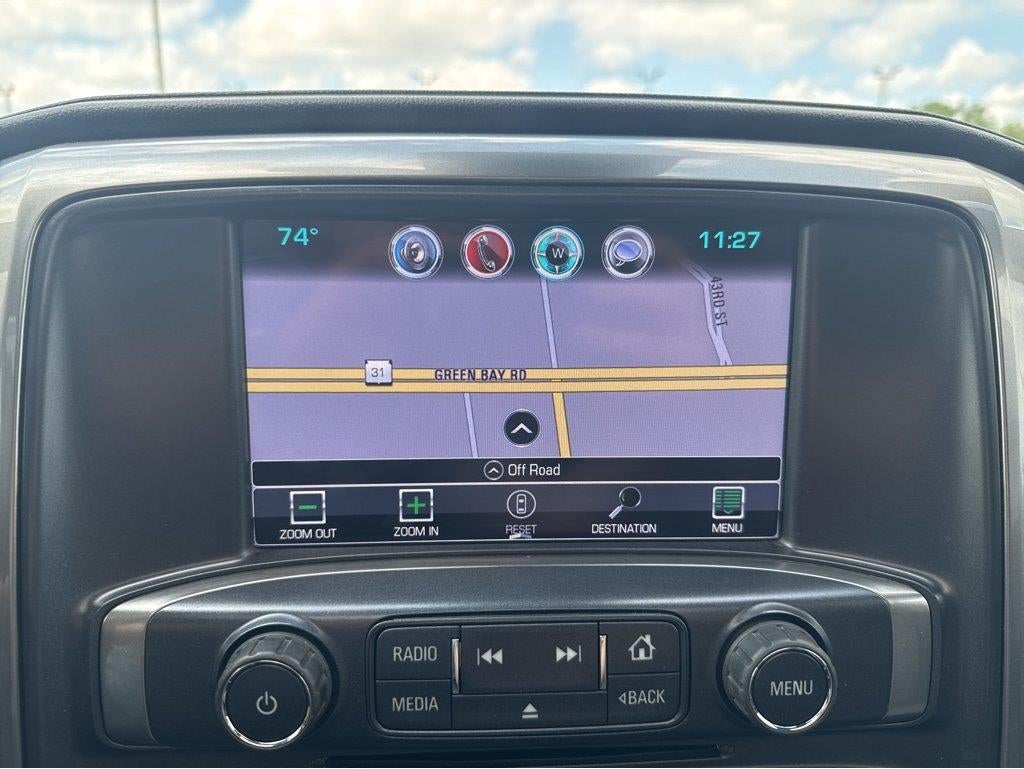

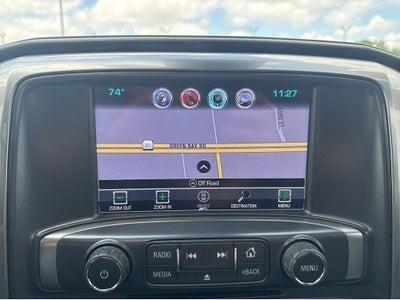

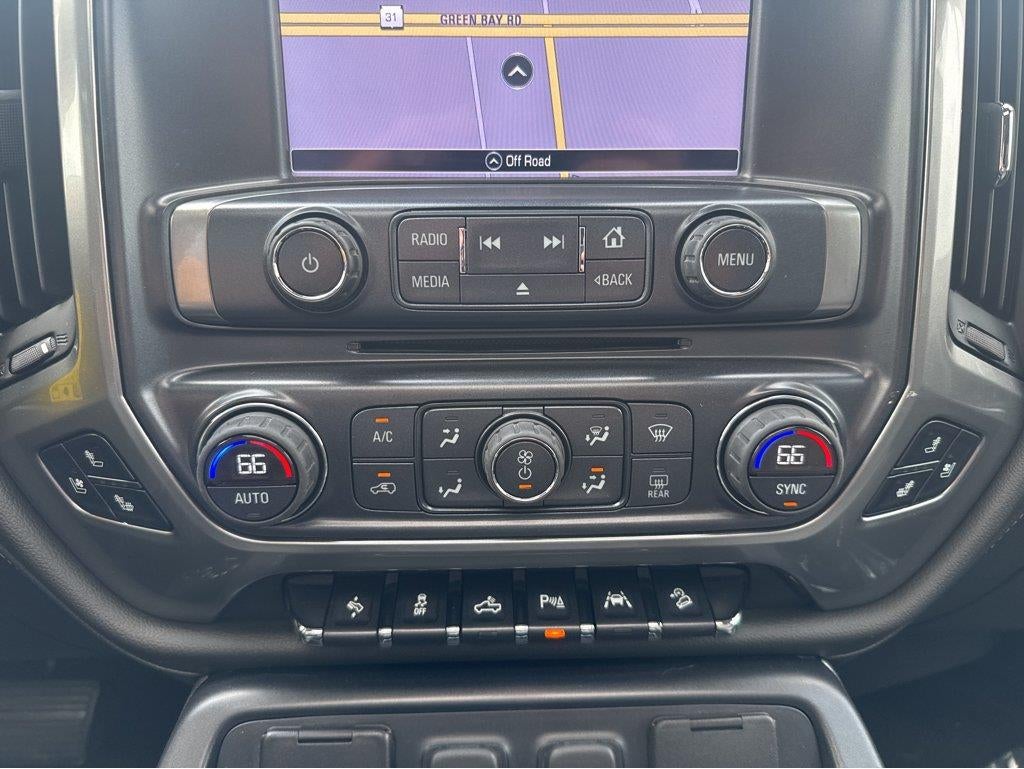

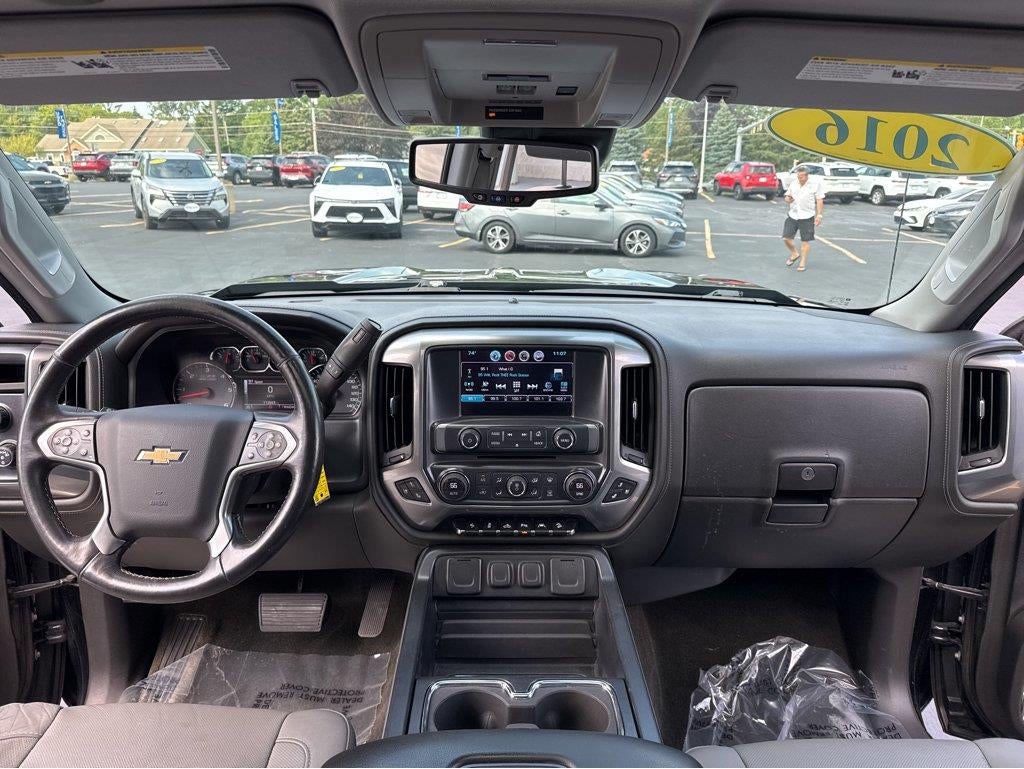

• Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone
• Single-slot CD/MP3 player (On Crew Cab model replaced by DVD/Blu-Ray Entertainment Package when (U42) is ordered.) (On Crew Cab model replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• Radio, HD
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.) (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• 6-speaker audio system
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

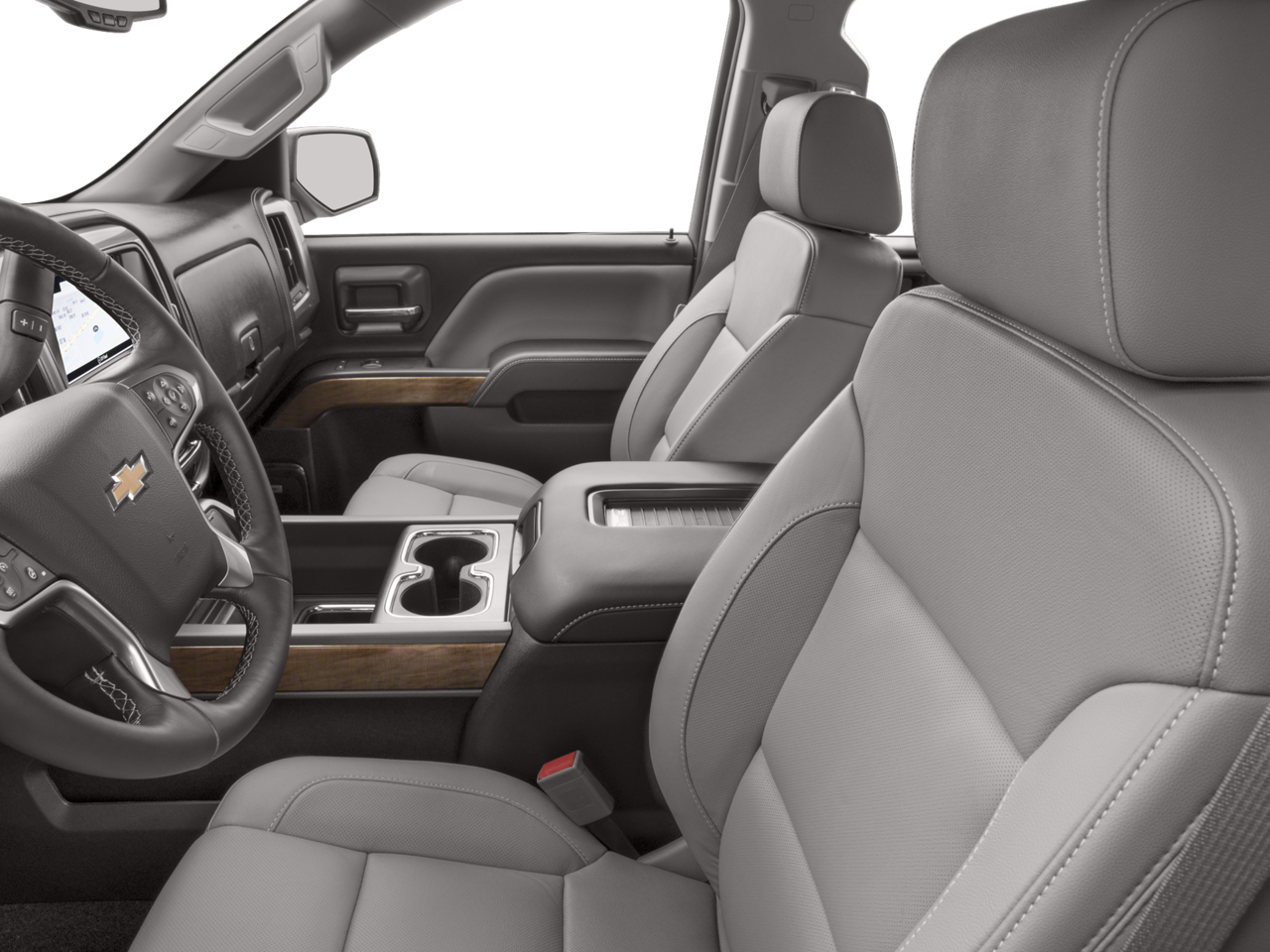

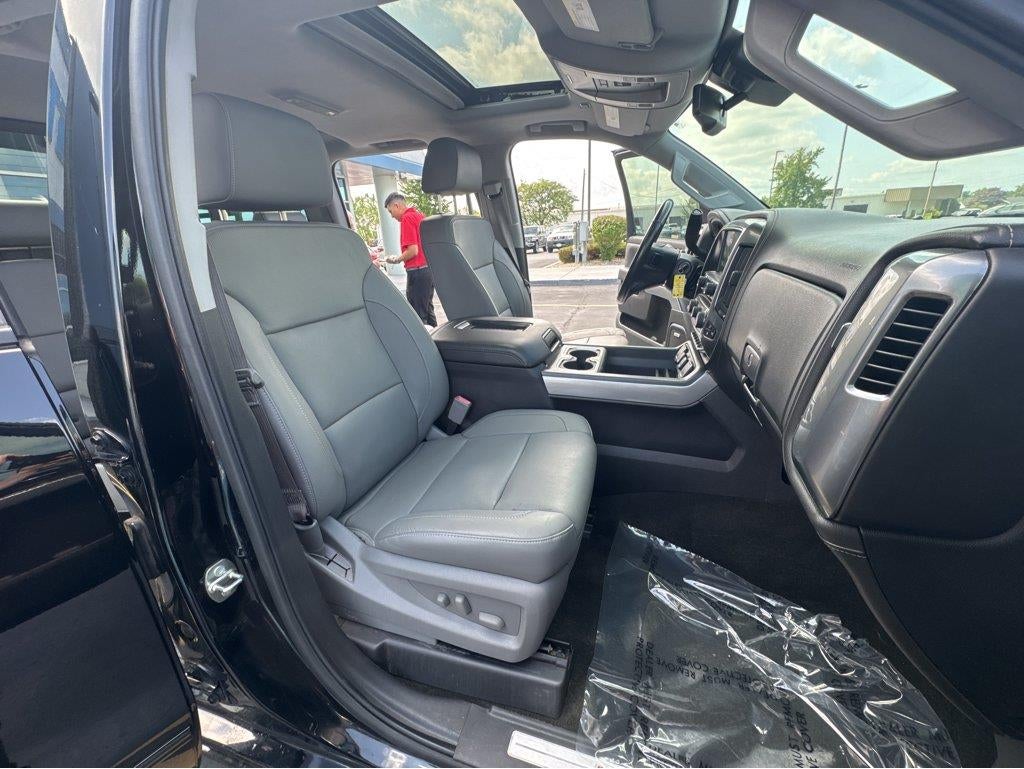

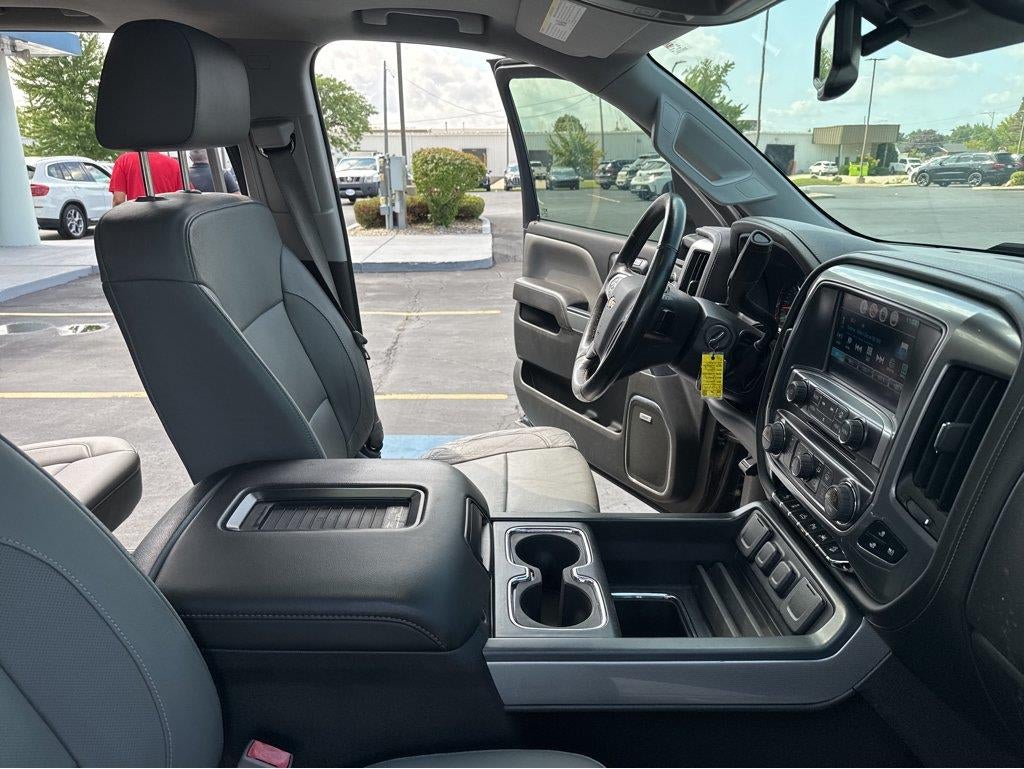

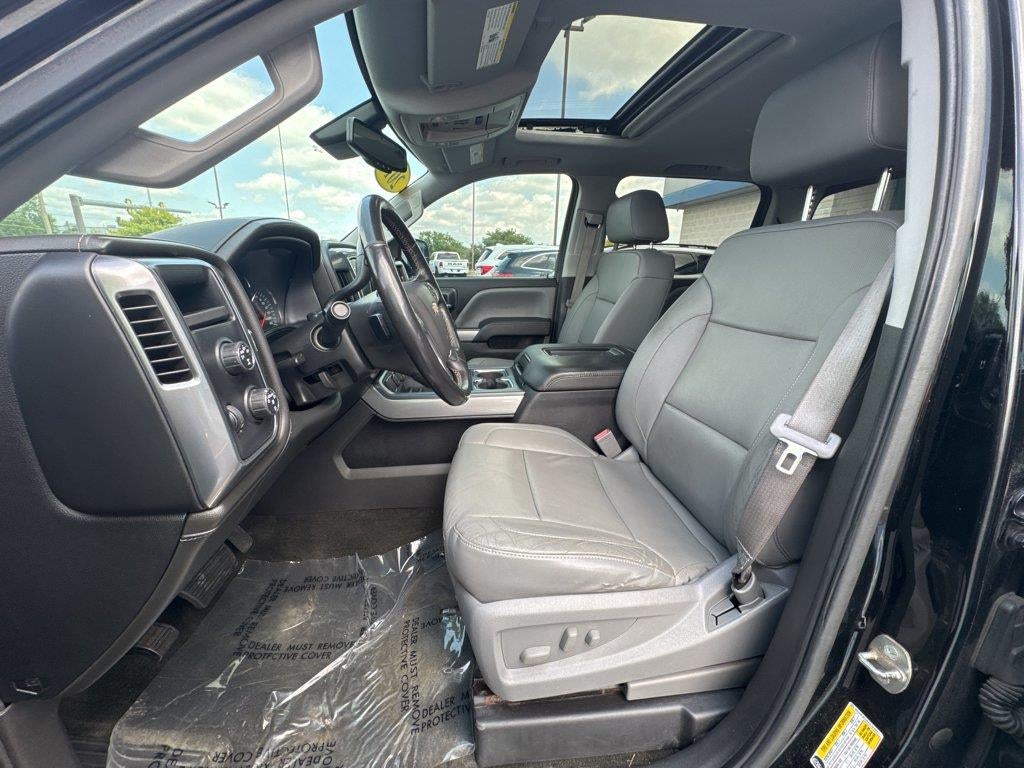

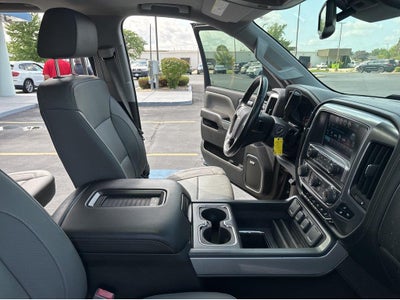

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2-position driver memory and adjustable outboard head restraints.

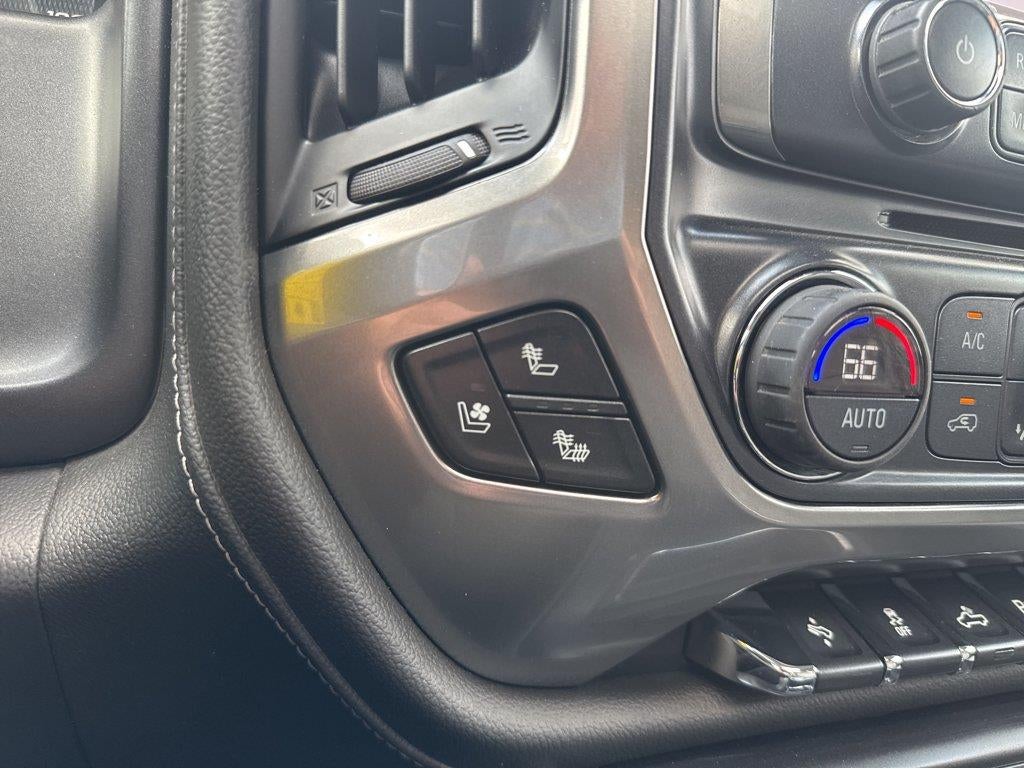

• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.

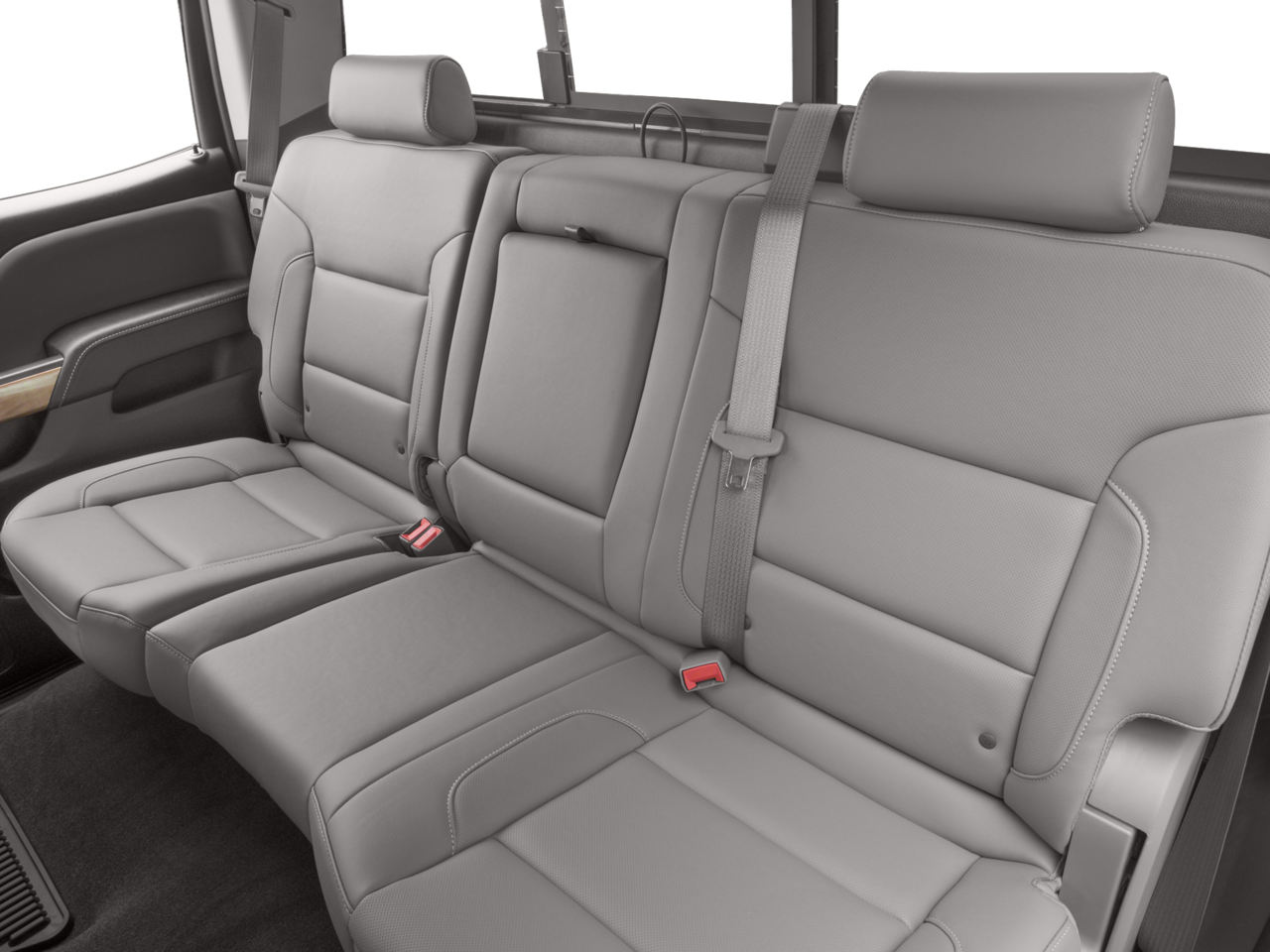

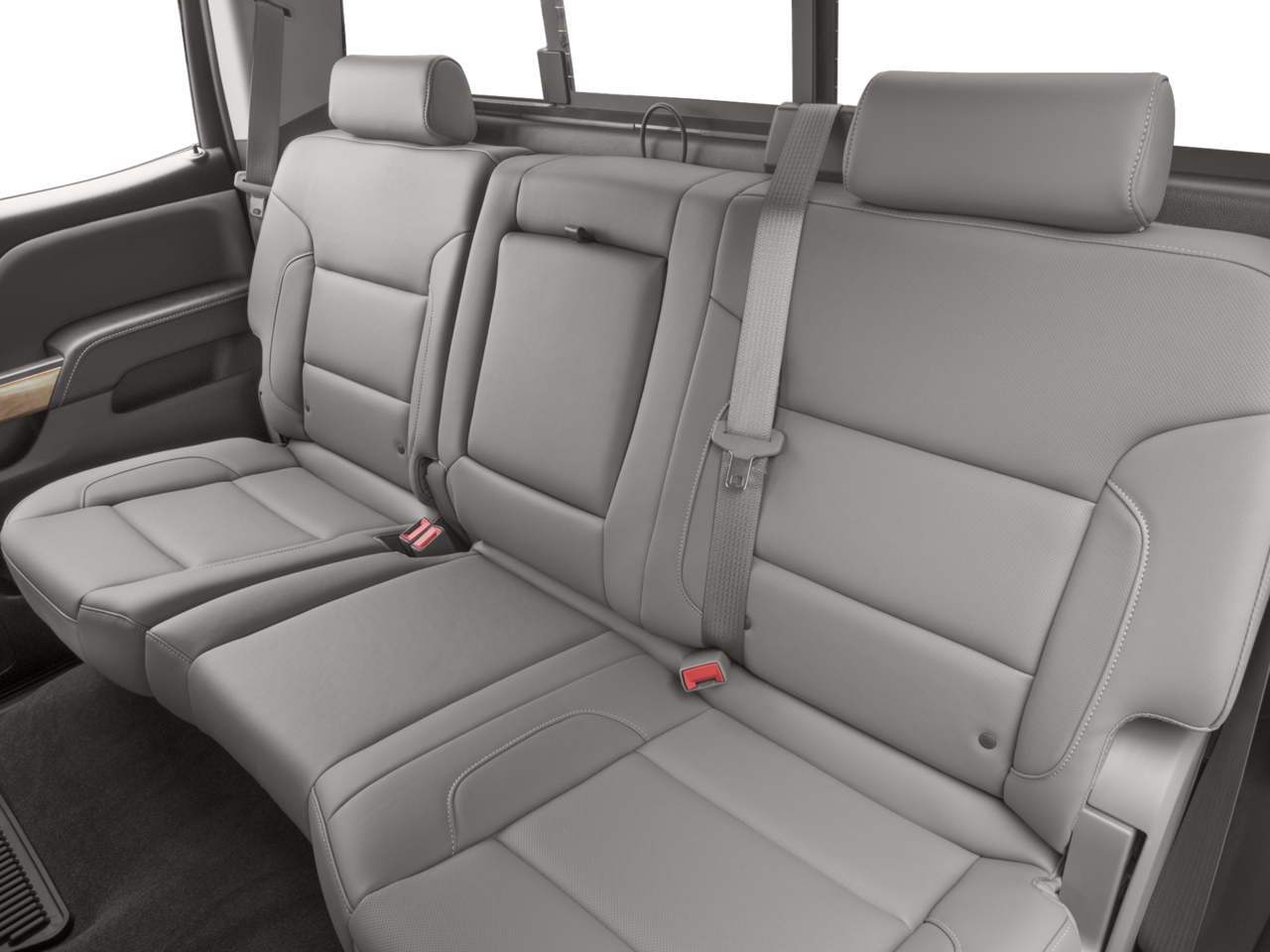

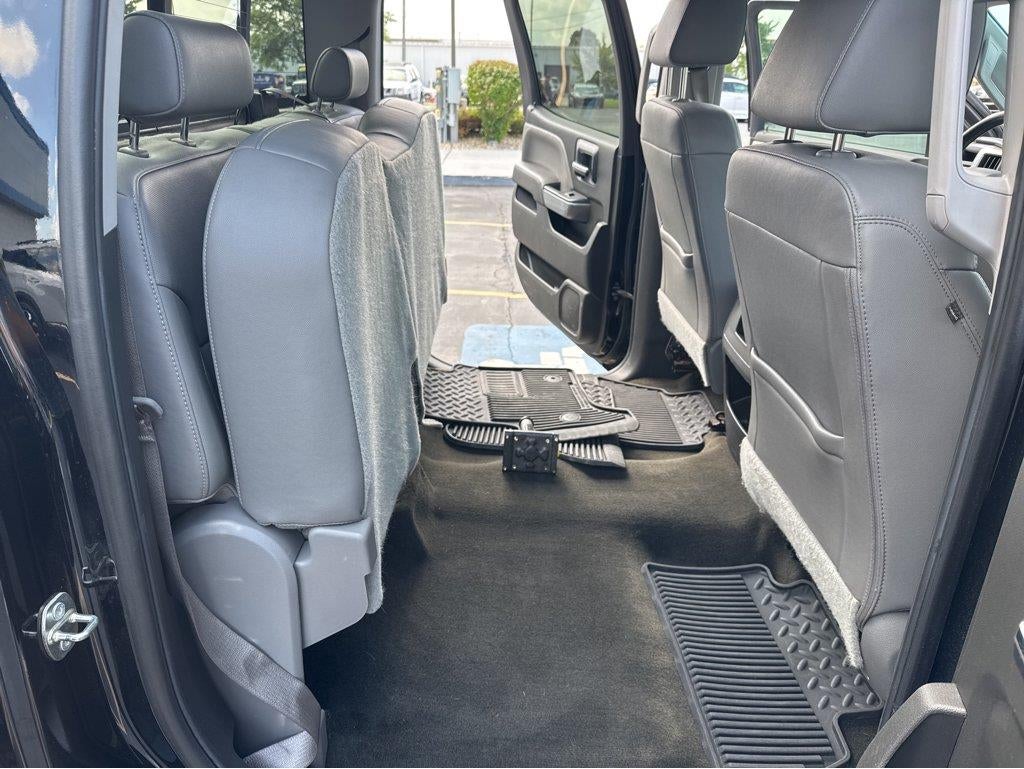

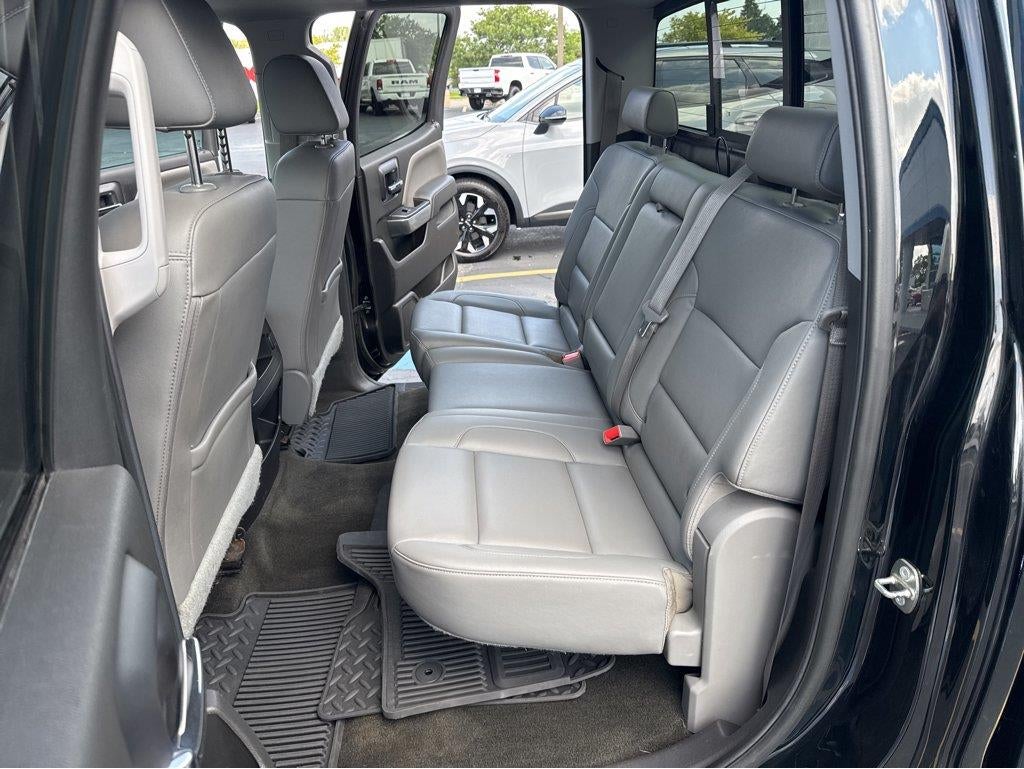

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)

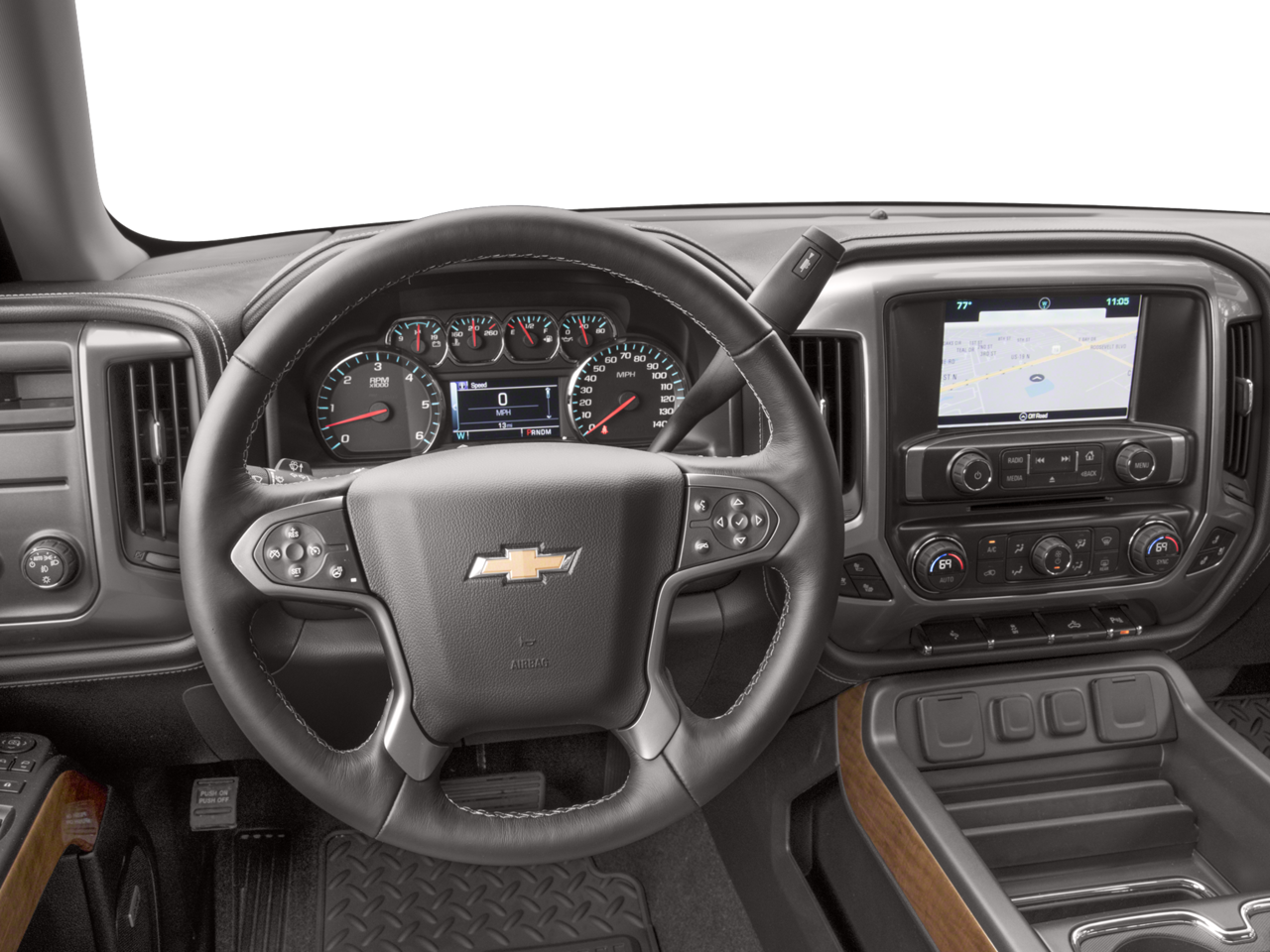

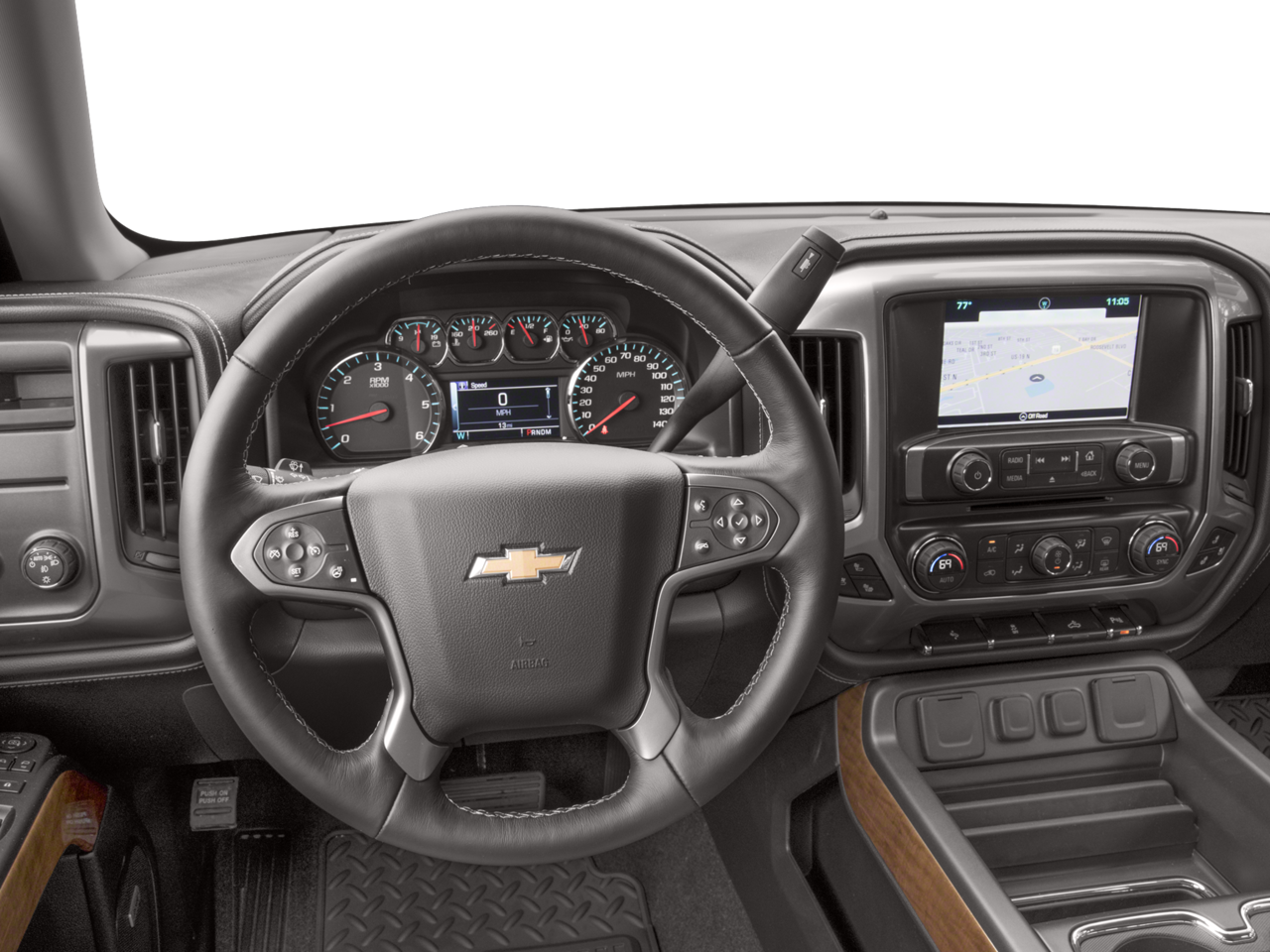

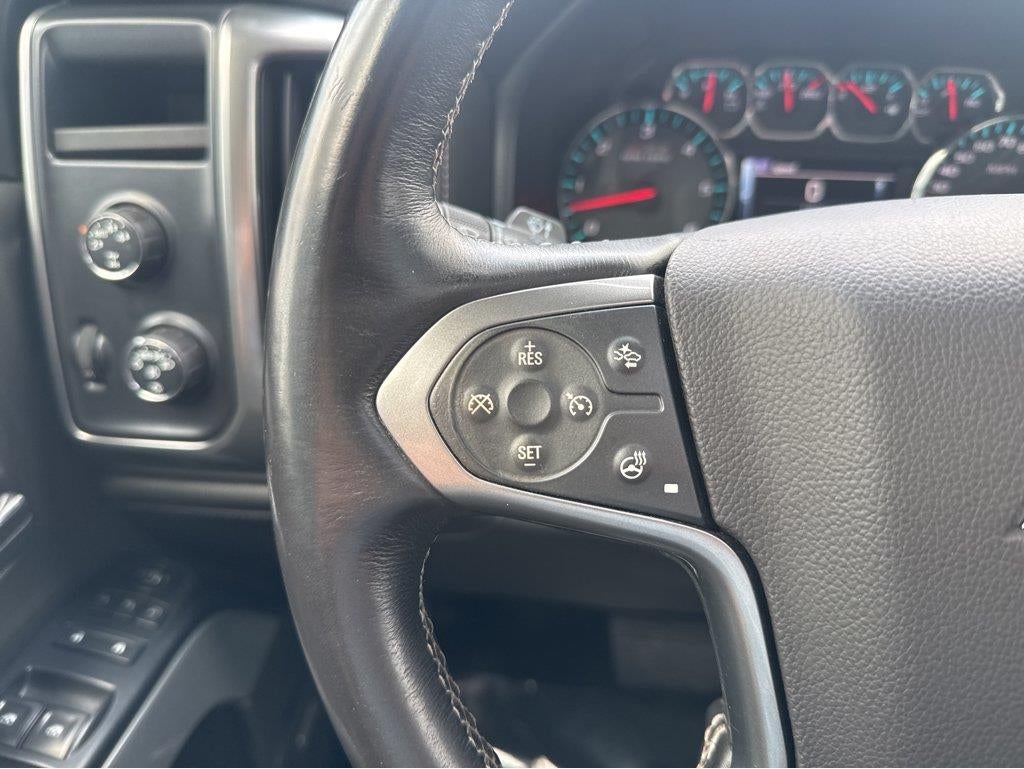

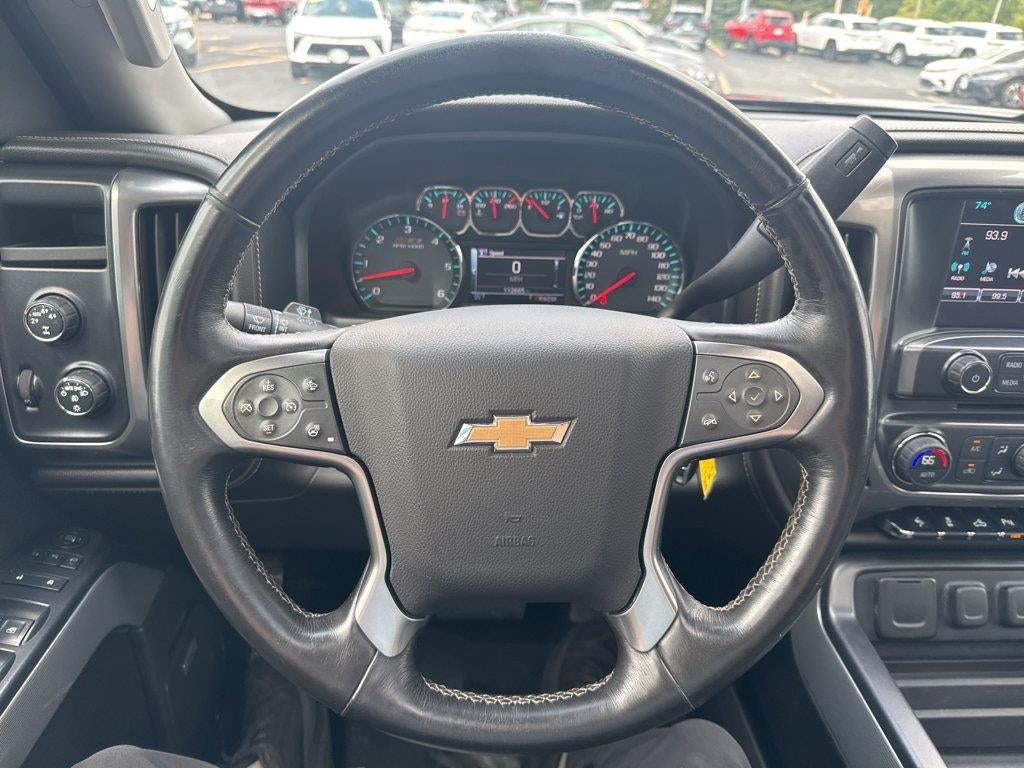

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering column, manual tilt and telescoping

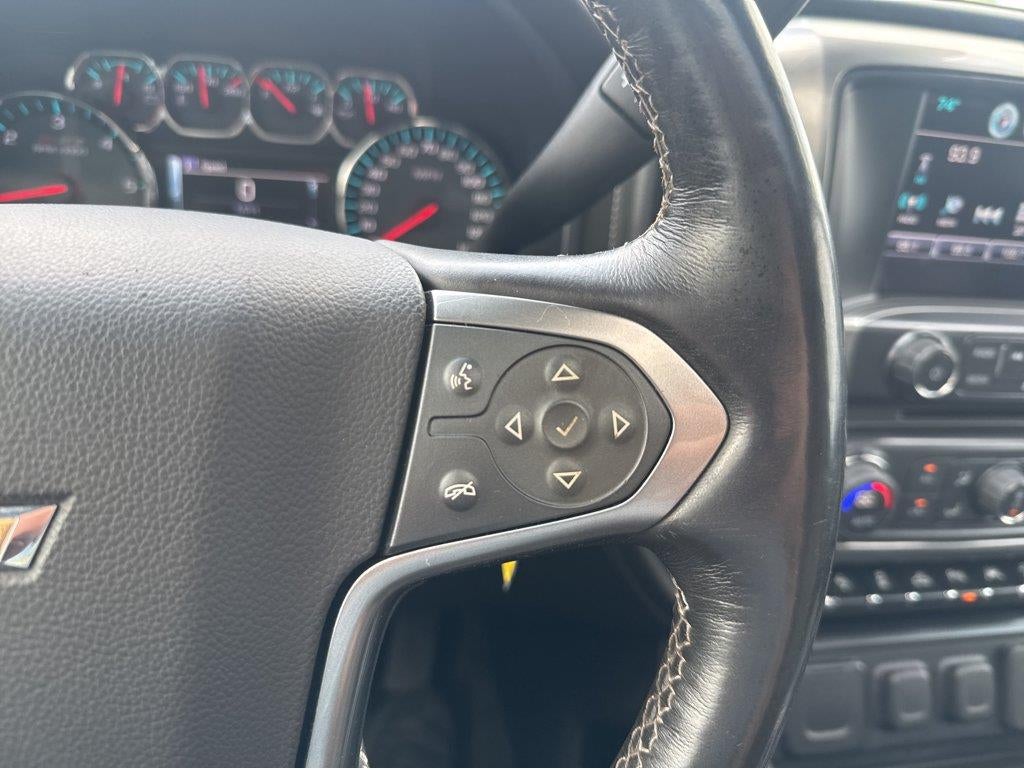

• Steering wheel audio controls
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information

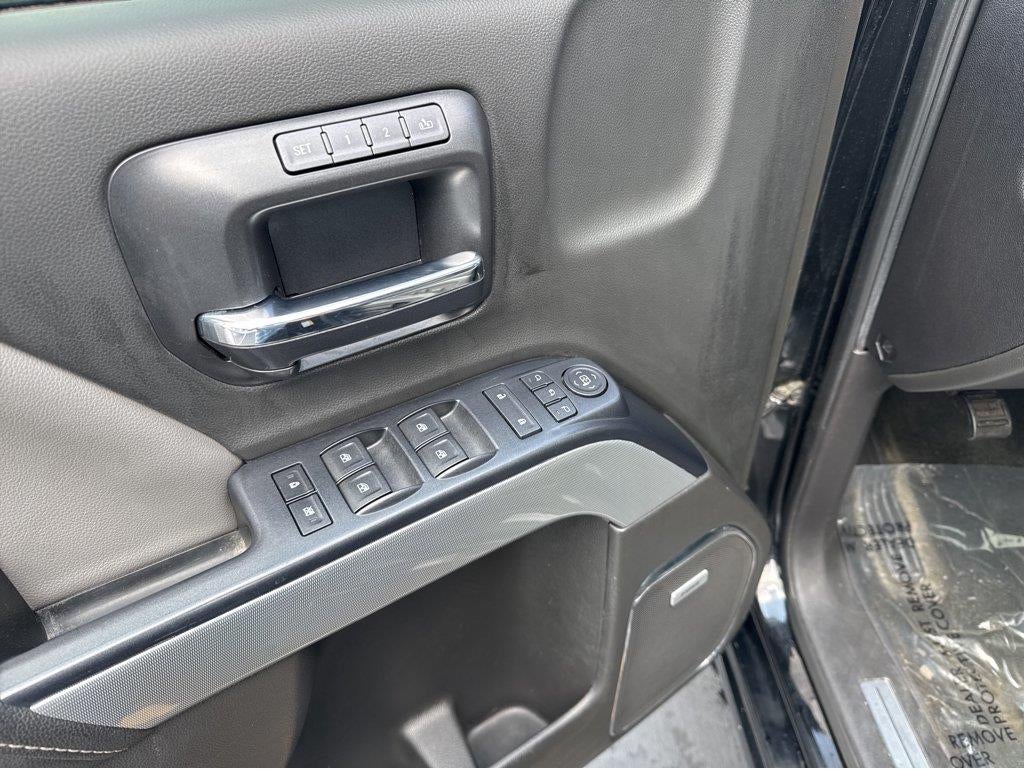

• Windows, power front and rear with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Remote vehicle starter system
• Universal Home Remote
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Driver Personalization Memory, Seat and Mirrors
• Air conditioning, dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Window, power, rear sliding with rear defogger
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger on A-pillar
• Power outlet, 110-volt AC

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)

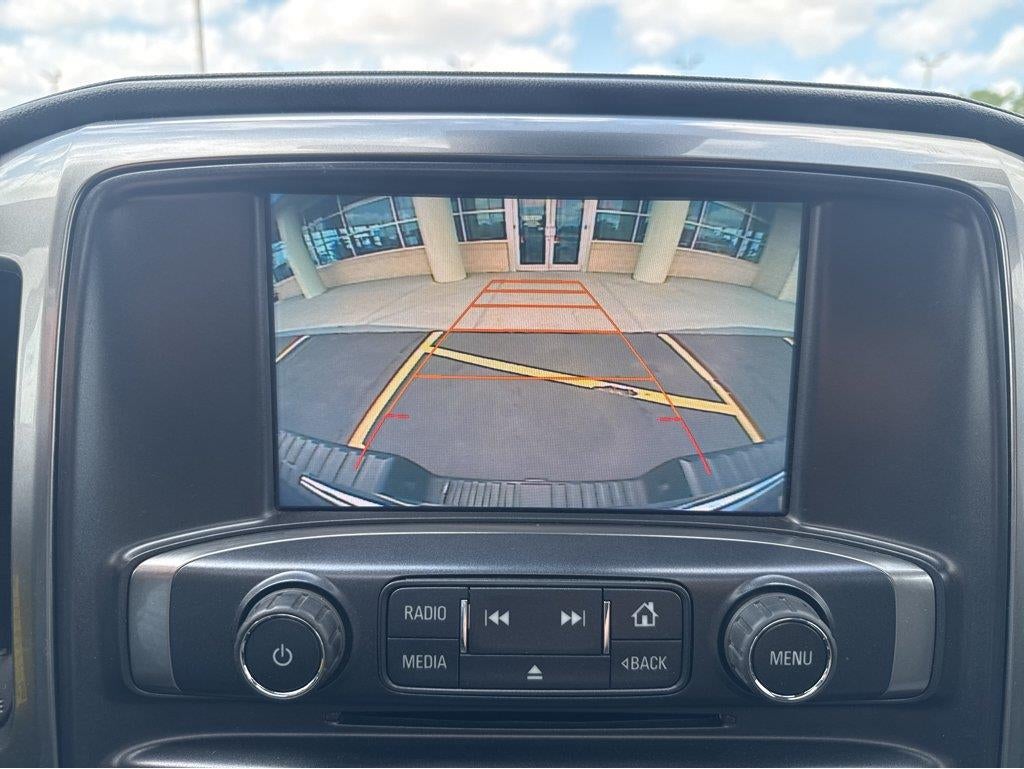

• Rear Vision Camera with dynamic guide lines
• Tire Pressure Monitoring System (does not apply to spare tire)

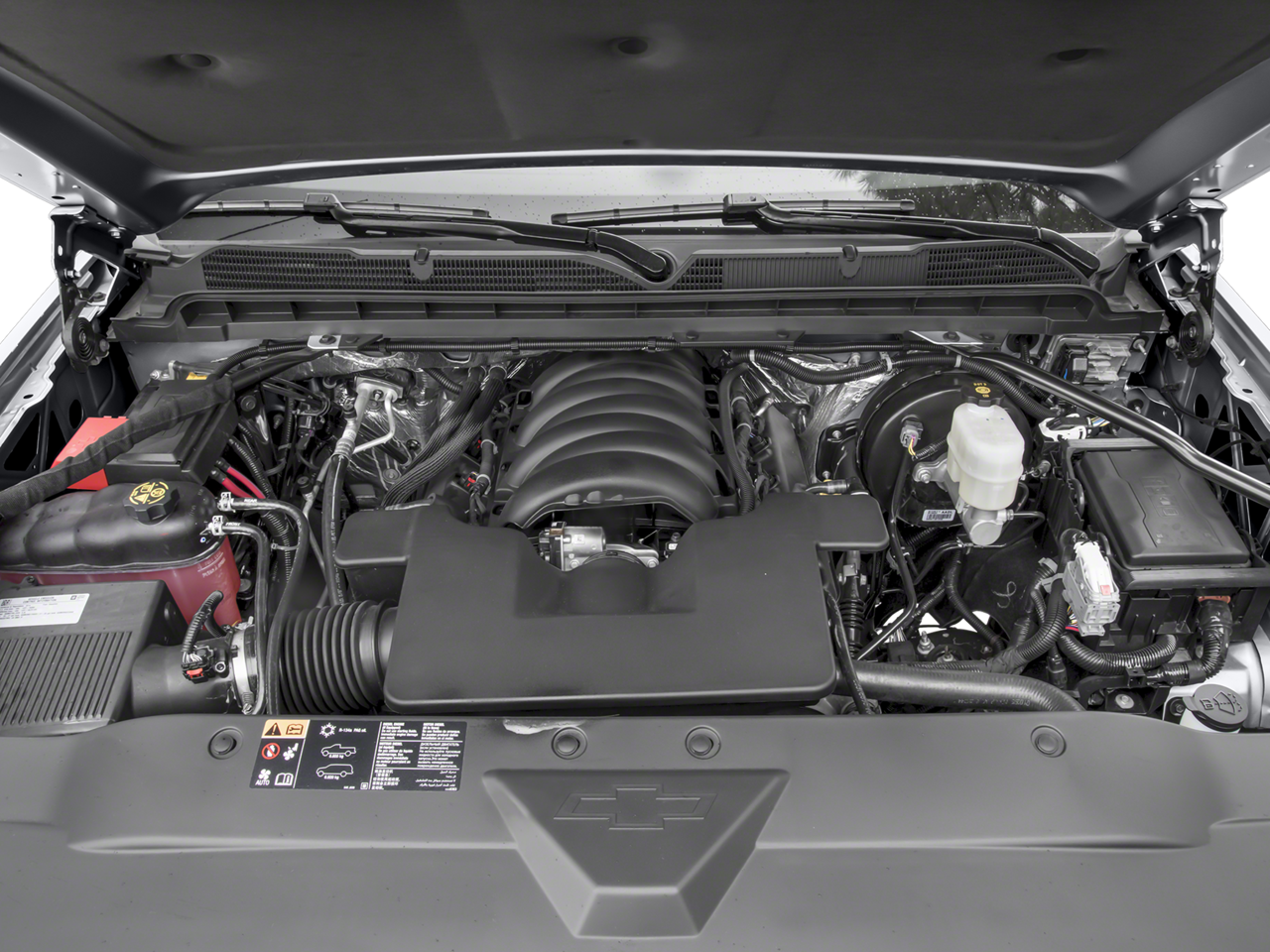

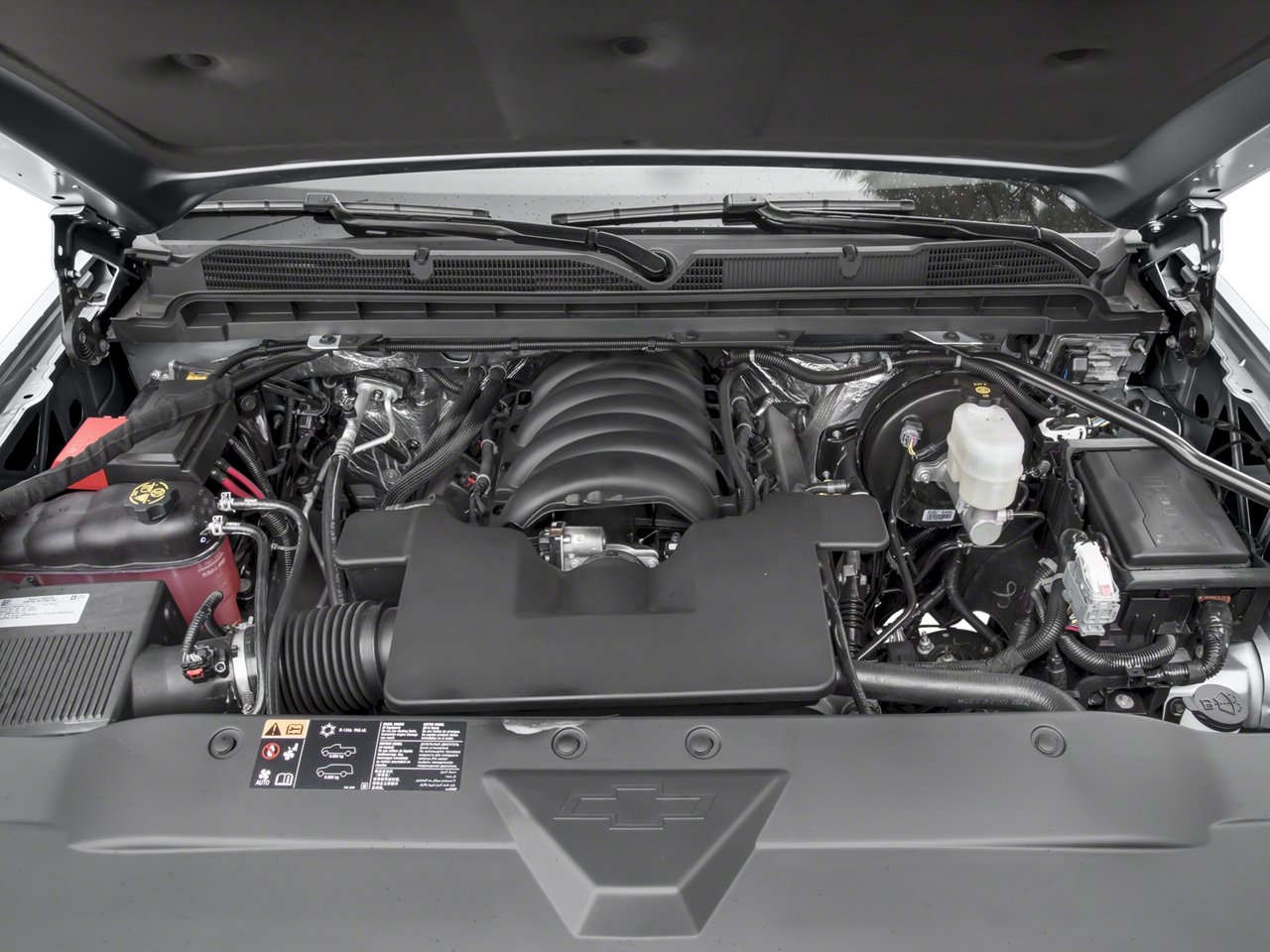

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)

• Z71 Appearance Package
• Trailering Package includes trailer hitch
• 7-pin and 4-pin connectors
• Engine
• 5.3L EcoTec3 V8 with Active Fuel Management
• Direct Injection and Variable Valve Timing includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• Rear axle
• 3.42 ratio (Required with (L83) 5.3L EcoTec3 V8 engine.)
• Pickup box
• GVWR
• 7200 lbs. (3266 kg) (Requires Crew Cab or Double Cab 4WD models and (L83) 5.3L EcoTec3 V8 engine or (L86) 6.2L EcoTec3 V8 engine.)
• Vehicle control
• hill descent
• Transfer case
• electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Differential
• heavy-duty locking rear
• Four wheel drive
• Cooling
• external engine oil cooler
• Cooling
• auxiliary external transmission oil cooler
• Air cleaner
• high-capacity
• Battery
• heavy-duty 720 cold-cranking amps/80 Amp-hr
• maintenance-free with rundown protection and retained accessory power
• Alternator
• 150 amps
• Underbody shield
• transfer case protection (Requires 4WD models.)
• Frame
• fully-boxed
• hydroformed front section
• Steering
• Electric Power Steering (EPS) assist
• rack-and-pinion
• Brakes
• 4-wheel disc with DURALIFE rotors
• 4-wheel antilock
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Wheel
• full-size spare
• 17" x 7" (43.2 cm x 17.8 cm) aluminum (Included and only available with model K15543 and (L83) 5.3L EcoTec3 V8 engine or with model CC15743 model and (L83) 5.3L EcoTec3 V8 engine. LPO wheels require model CC15743.)
• Tire carrier lock
• keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front body color
• Bumper
• rear body-color
• with CornerSteps
• Bed Liner
• Spray-on
• Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops. (Included with (PDL) Cargo Convenience Package. Not available with (VZX) bed liner
• LPO.)
• Lamps
• cargo area
• cab mounted with switch on center switch bank
• CornerStep
• rear bumper
• Moldings
• bodyside
• chrome
• Wheelhouse liners
• rear
• Grille surround
• body color
• Headlamp bezels
• body-color
• Taillamps
• LED with signature
• Fog lamps
• thin profile LED
• Mirrors
• outside chrome cap
• heated power-adjustable
• power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps
• chrome
• Glass
• deep-tinted
• Door handles
• chrome
• Tailgate and bed rail protection cap
• top
• Remote Locking Tailgate
• Tailgate
• EZ-Lift and Lower
• Radio
• HD
• 6-speaker audio system
• Seat
• rear 60/40 folding bench (folds up)
• 3-passenger (includes child seat top tether anchor)
• Steering column
• manual tilt and telescoping

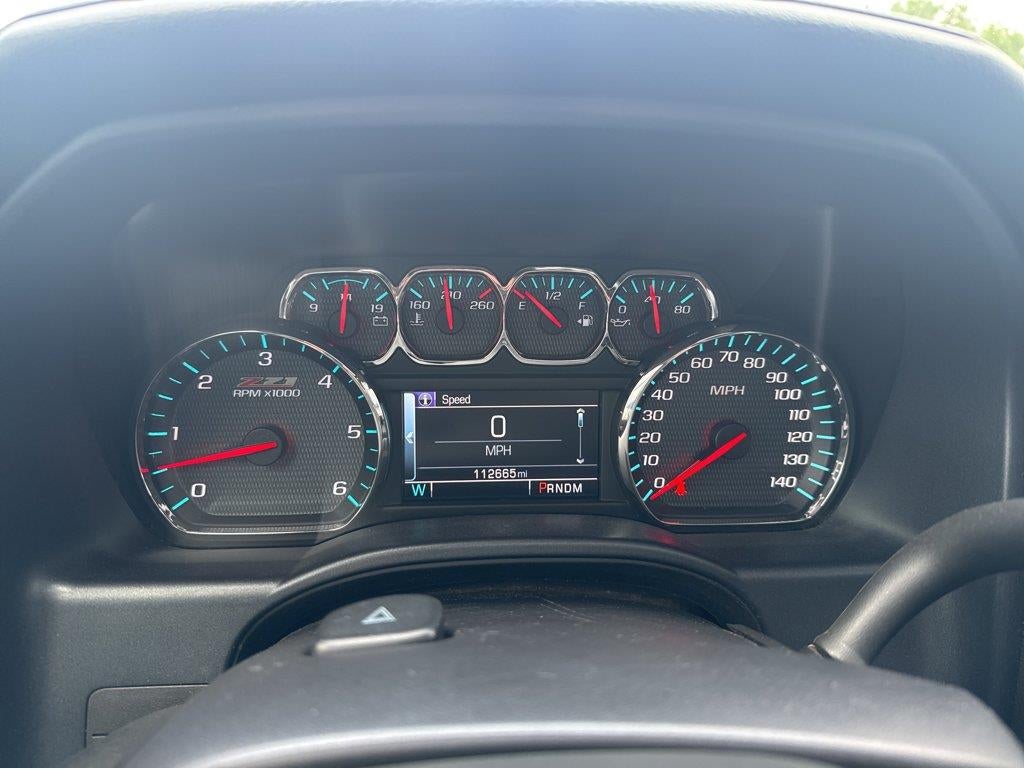

• Instrumentation
• 6-gauge cluster featuring speedometer
• fuel level
• engine temperature
• tachometer
• voltage and oil pressure
• Driver Information Center
• 4.2-inch diagonal color display includes driver personalization
• warning messages and vehicle information
• Windows
• power front and rear with driver express up and down and express down on all other windows
• Remote vehicle starter system
• Universal Home Remote
• Theft-deterrent system
• unauthorized entry
• Air conditioning
• dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Mirror
• inside rearview auto-dimming
• Visors
• driver and front passenger illuminated vanity mirrors
• Assist handle
• front passenger on A-pillar
• Power outlet
• 110-volt AC
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Airbags
• Dual-stage frontal airbags for driver and front passenger
• seat-mounted side-impact airbags for driver and front outboard passenger
• and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera with dynamic guide lines
• Tire pressure monitoring system (does not apply to spare tire)

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 910
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 11700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RBX
• Rear Tire Order Code: RBX
• Spare Tire Order Code: RC4

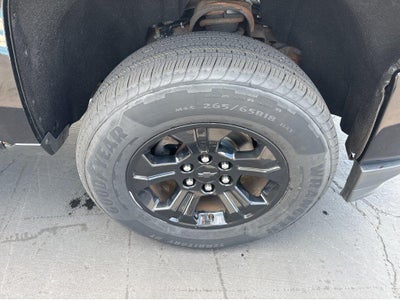

• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.03
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.97
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 31.97
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.90
• Ground Clearance, Rear (in): 8.90
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.33
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 53.4
• Ext'd Cab Cargo Volume (ft³): - TBD -

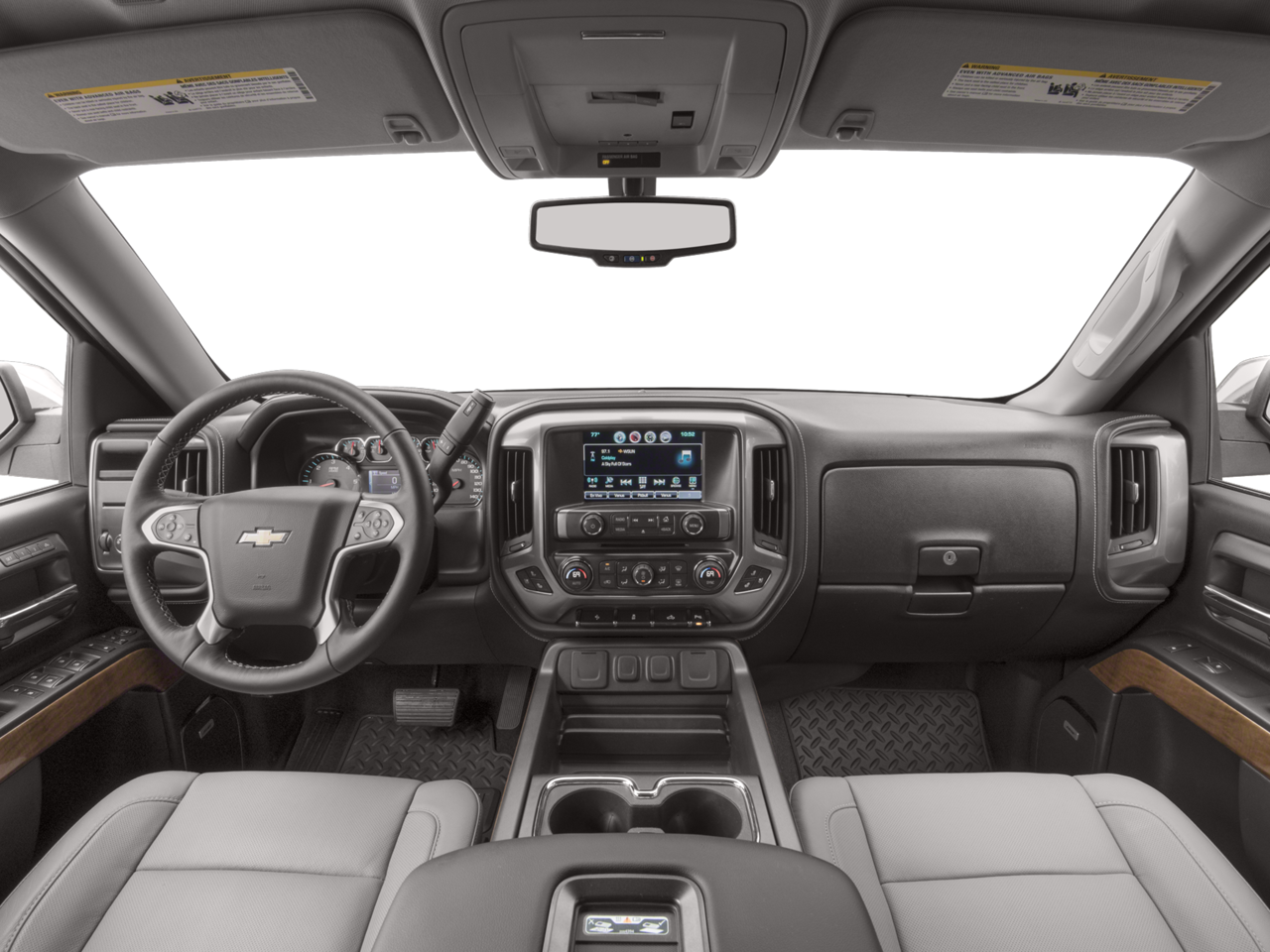

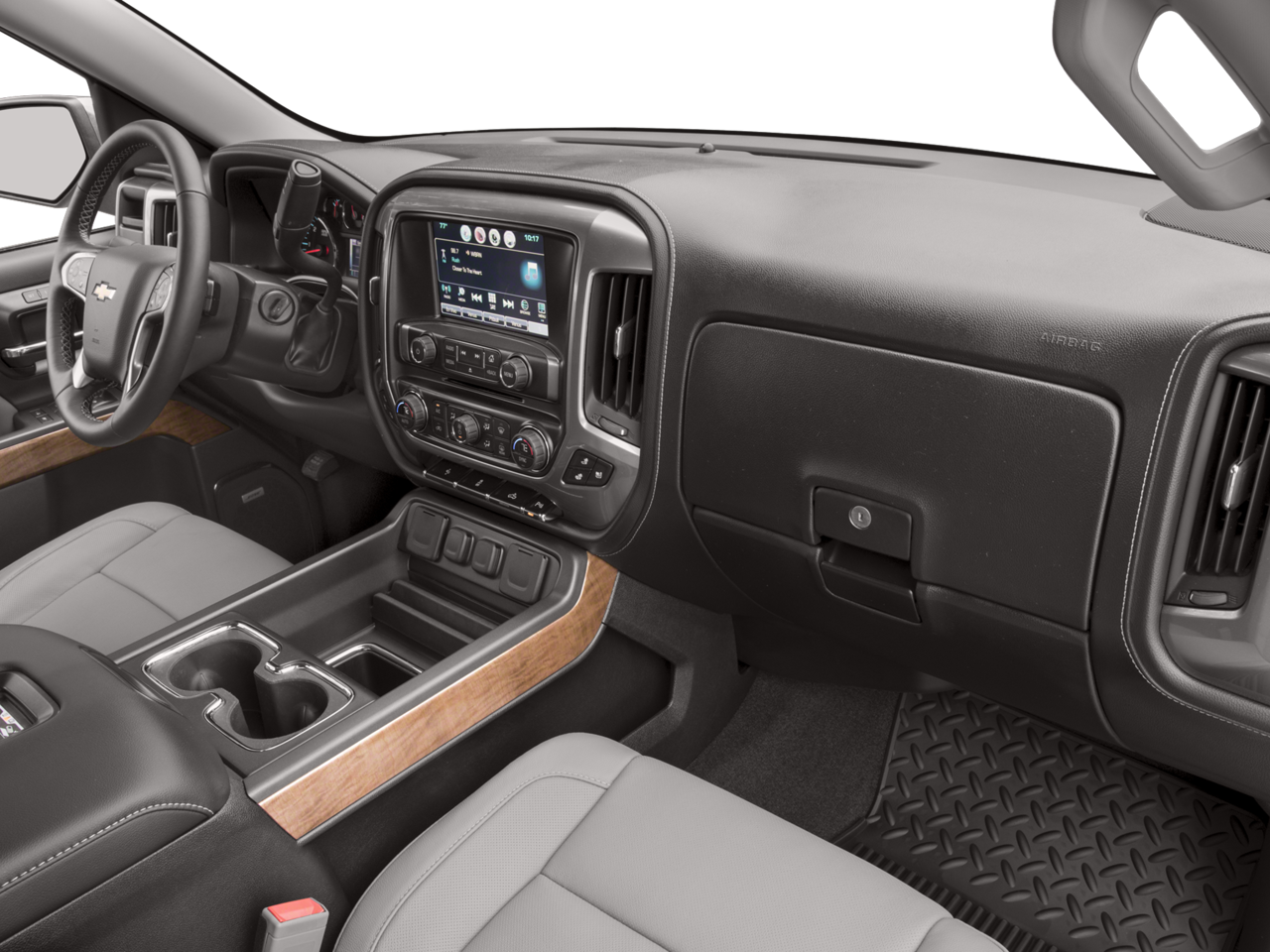

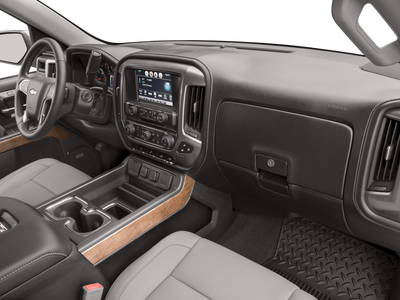

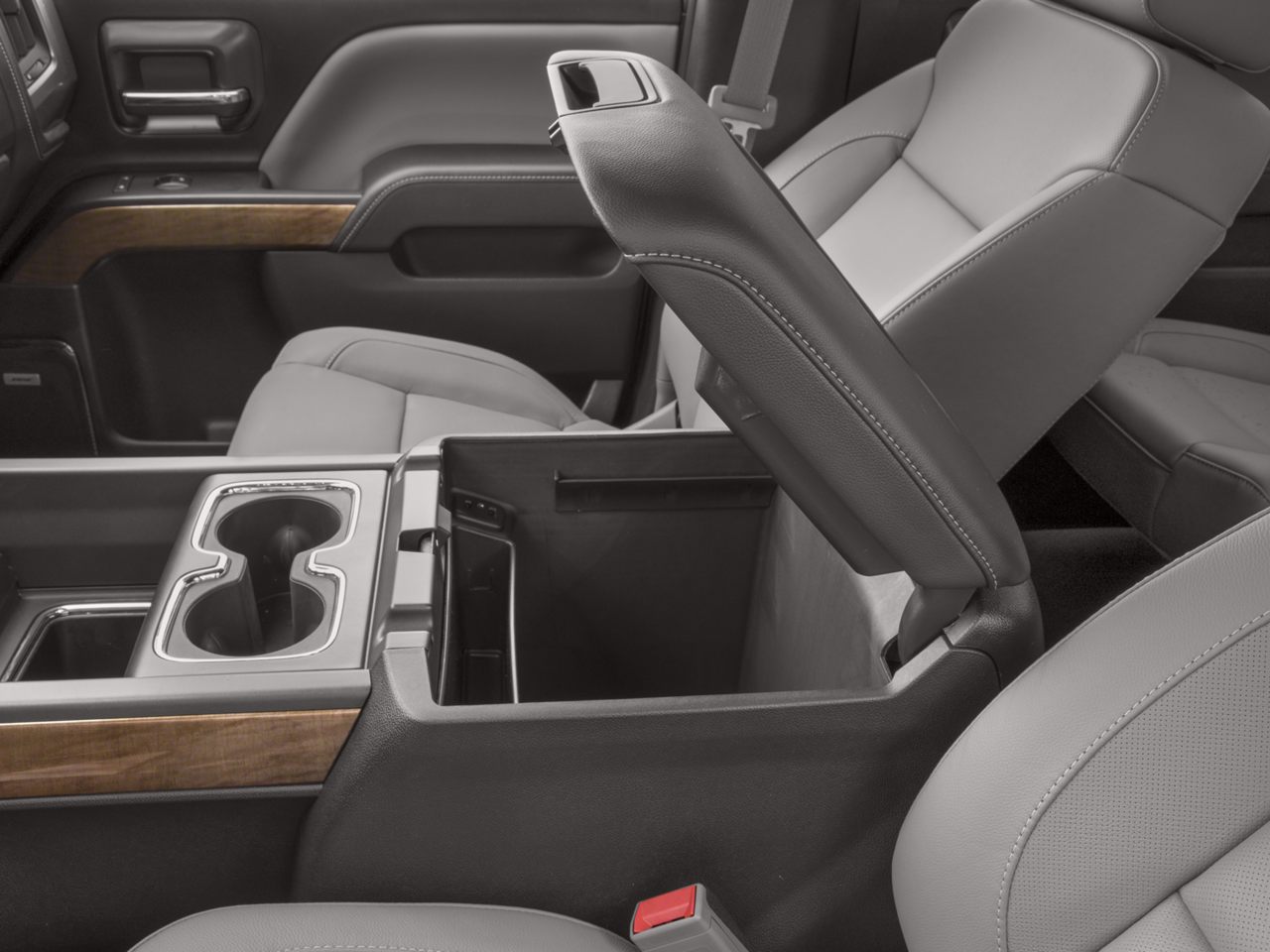

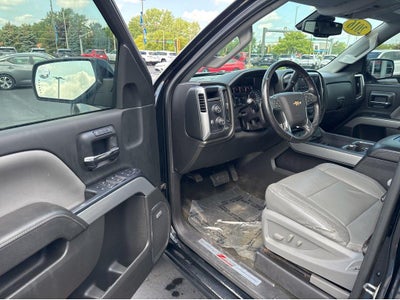

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary

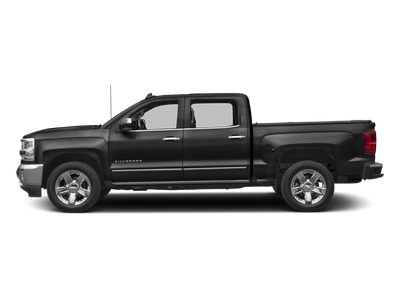

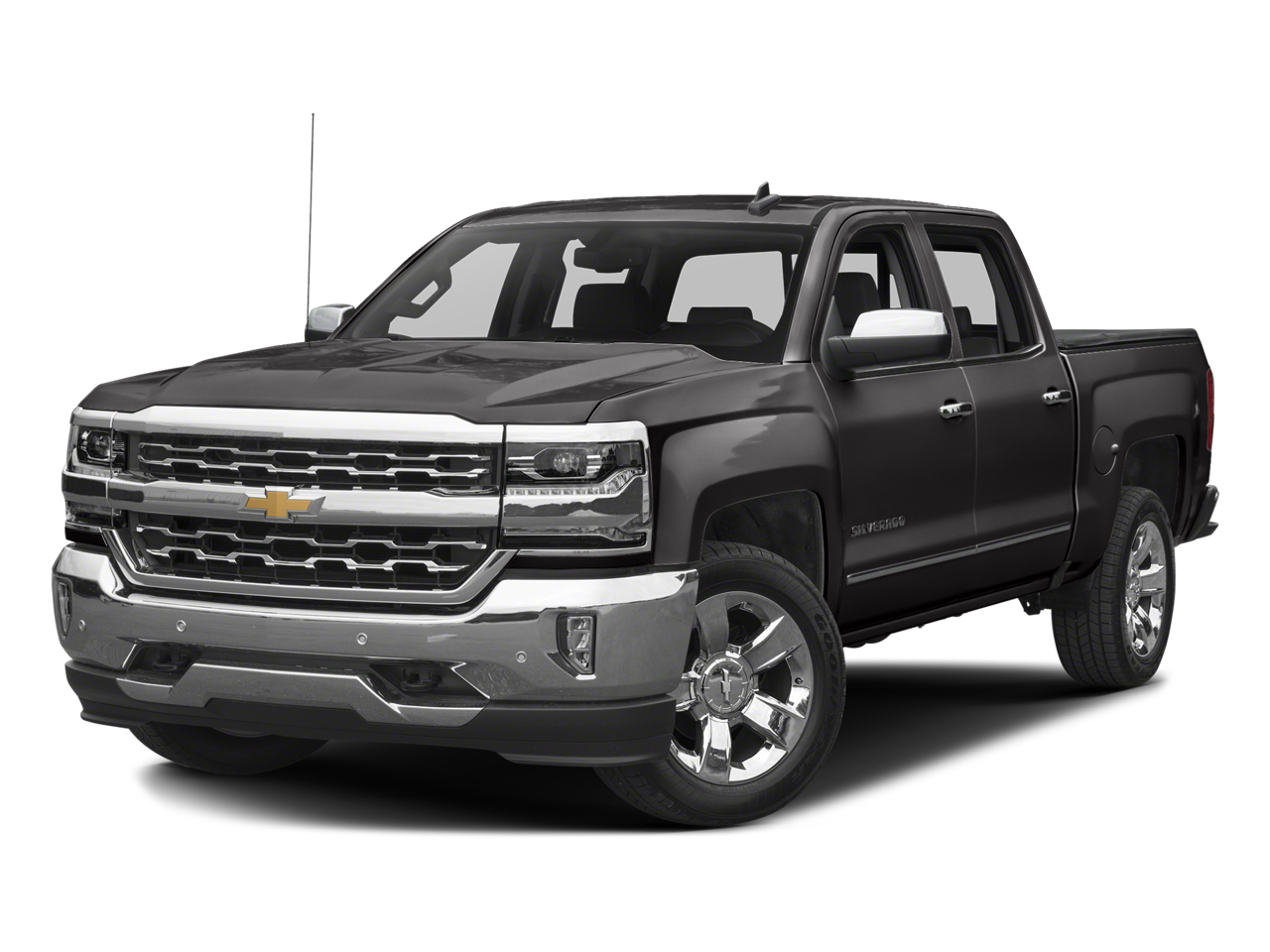

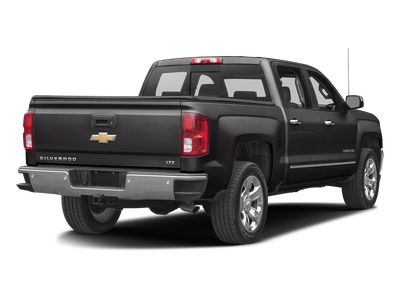

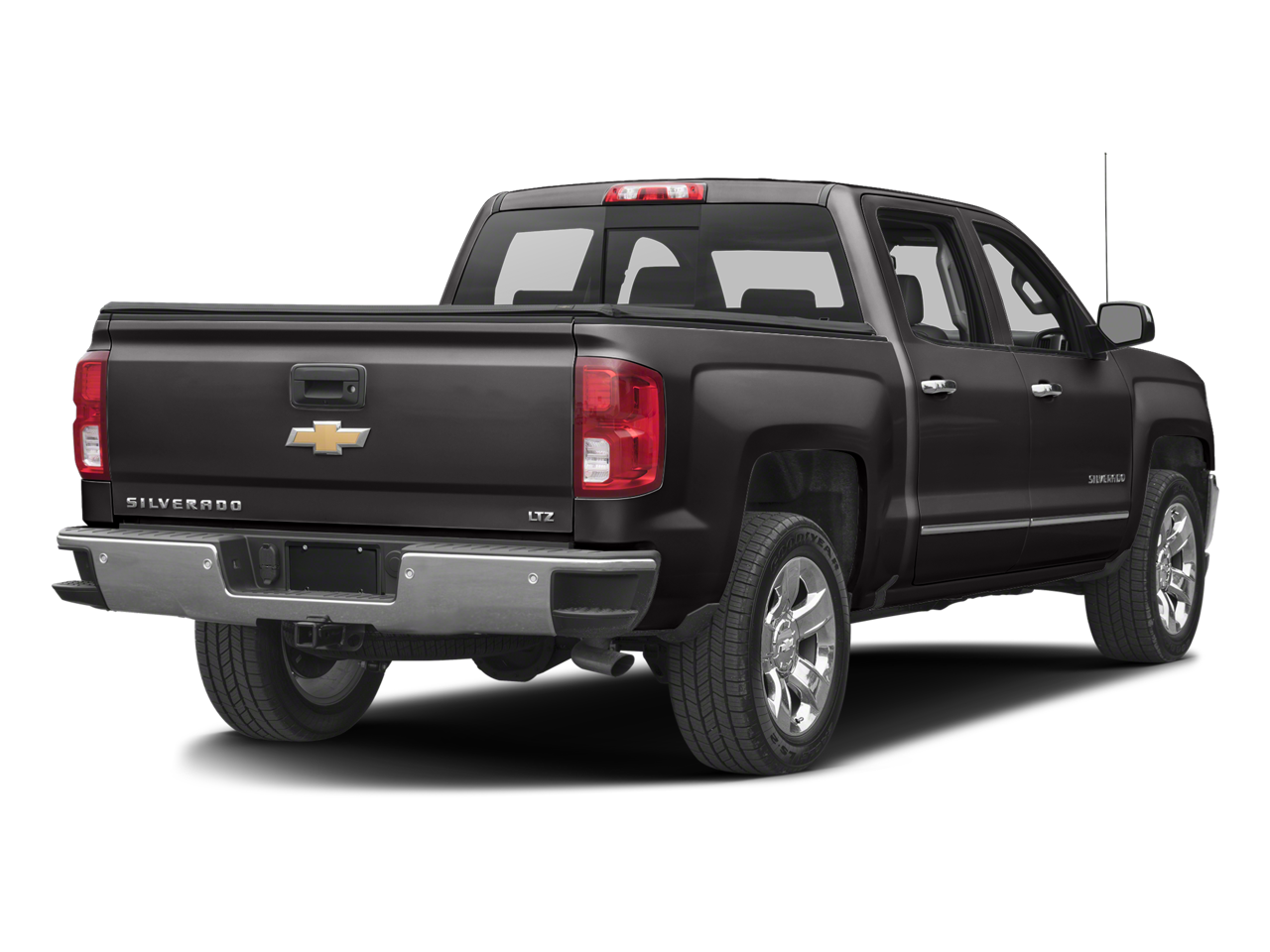

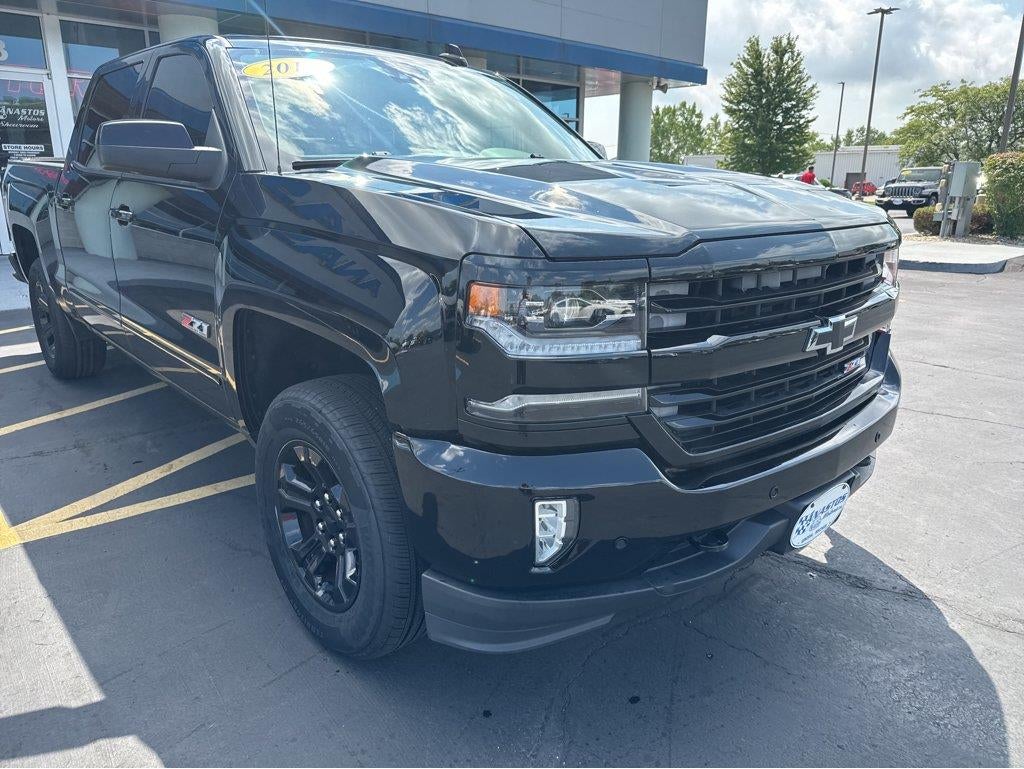

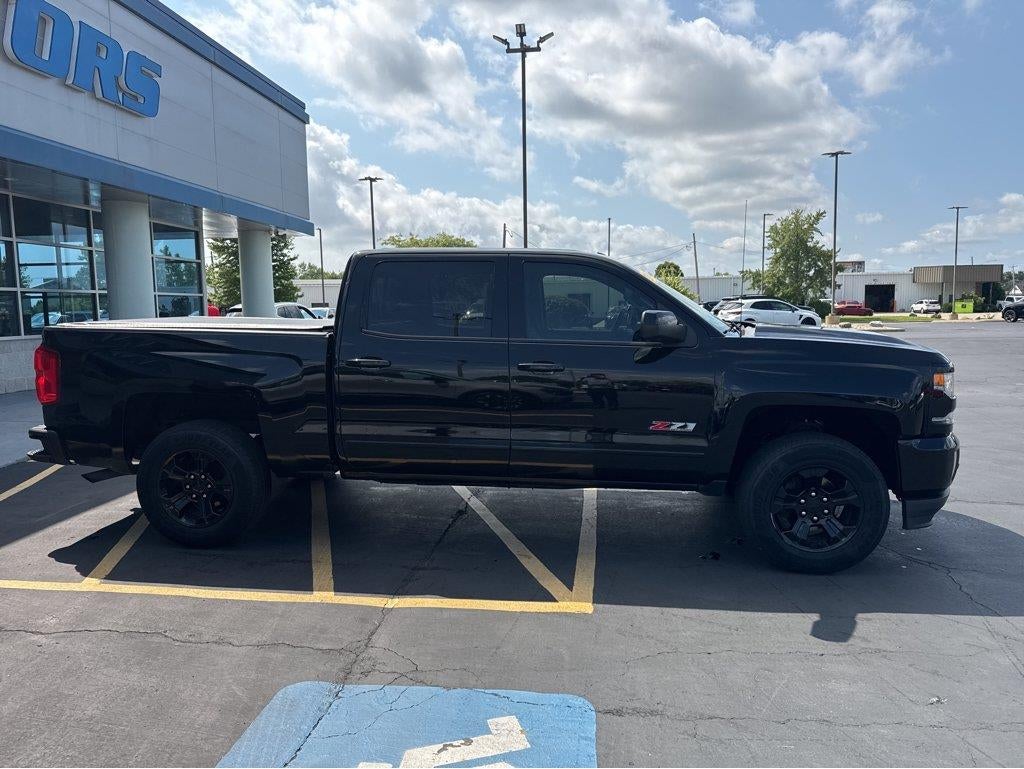

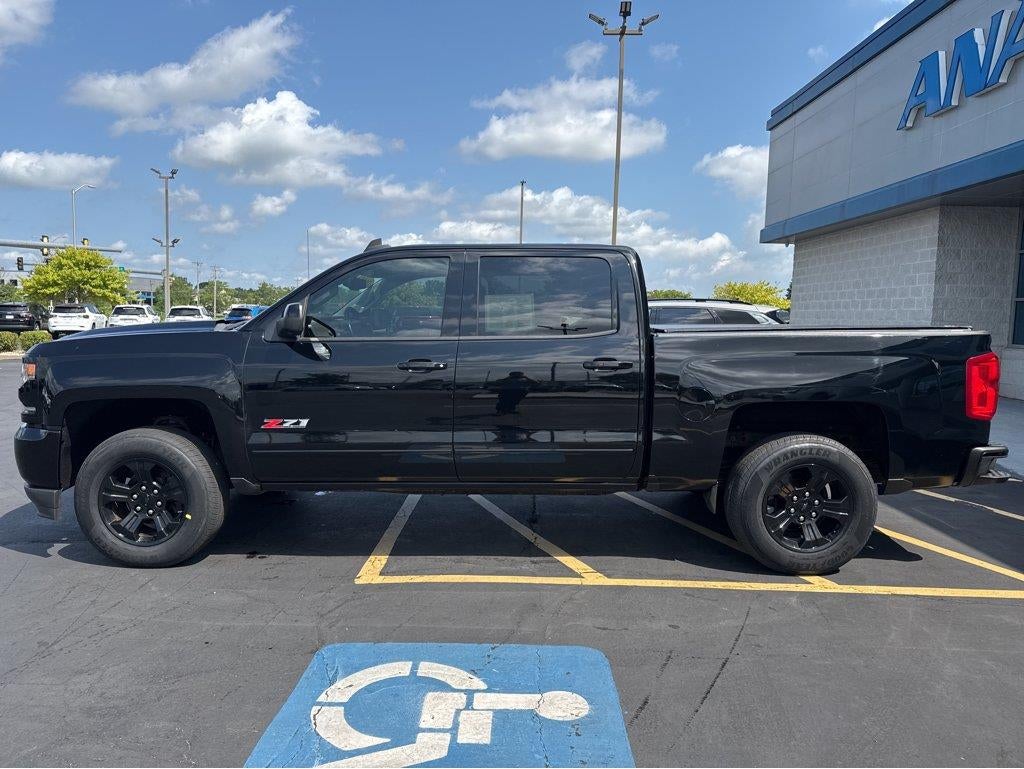

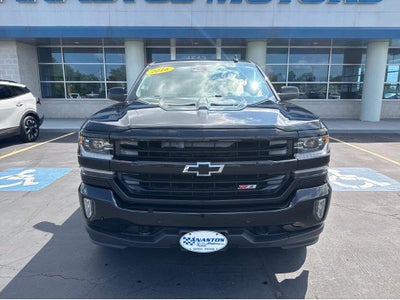

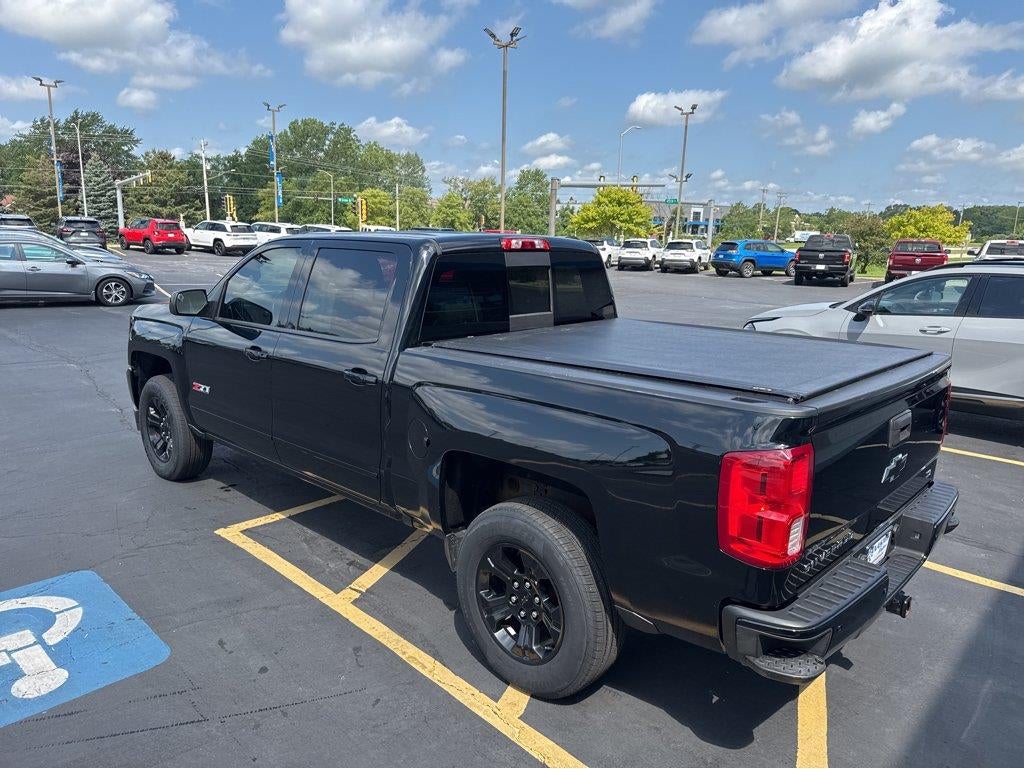

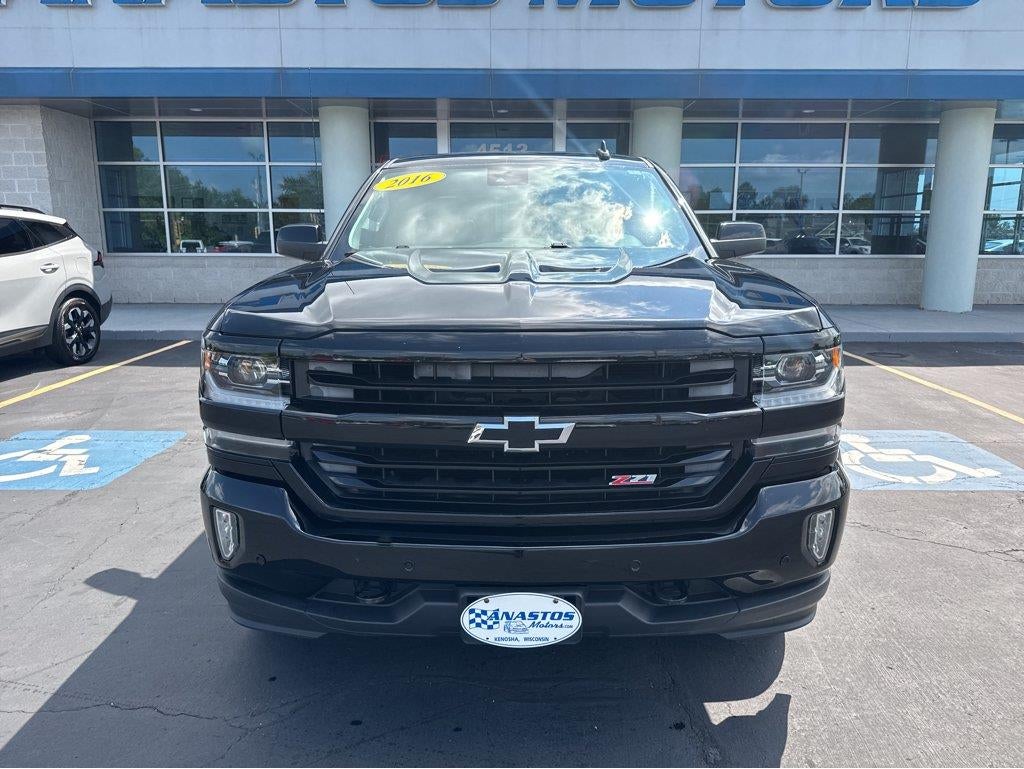

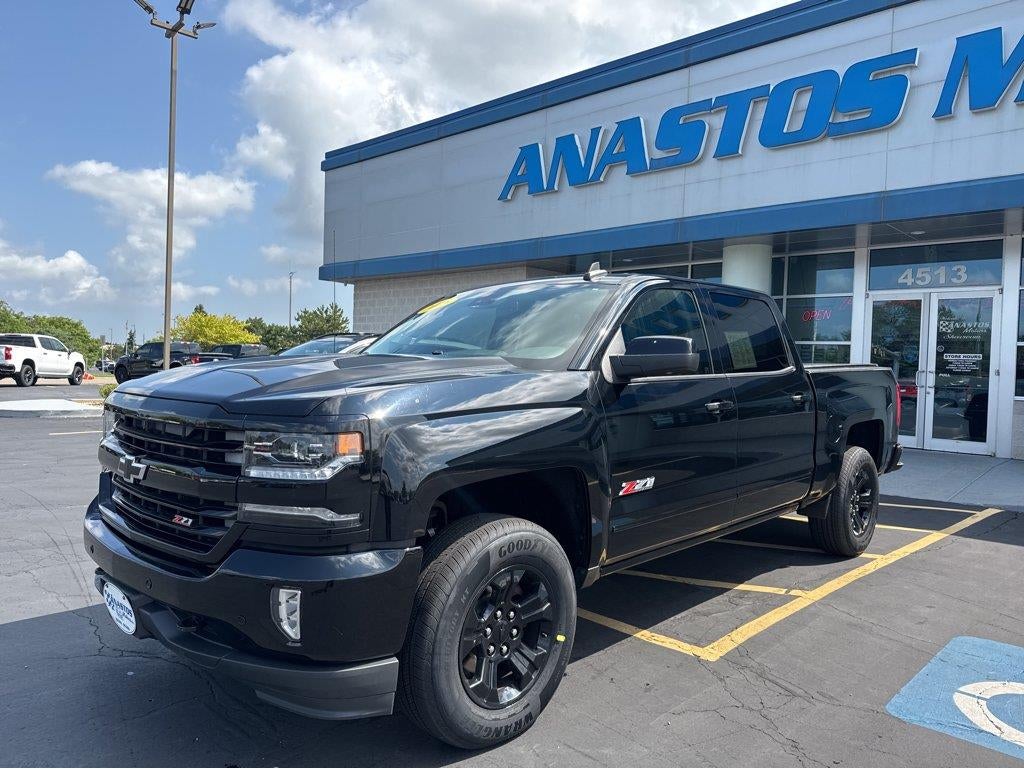

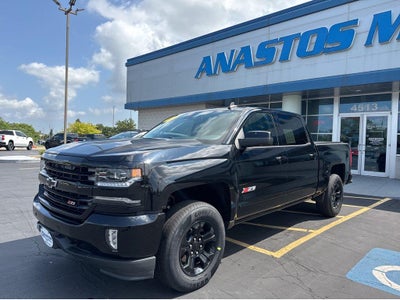

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.3
